Description

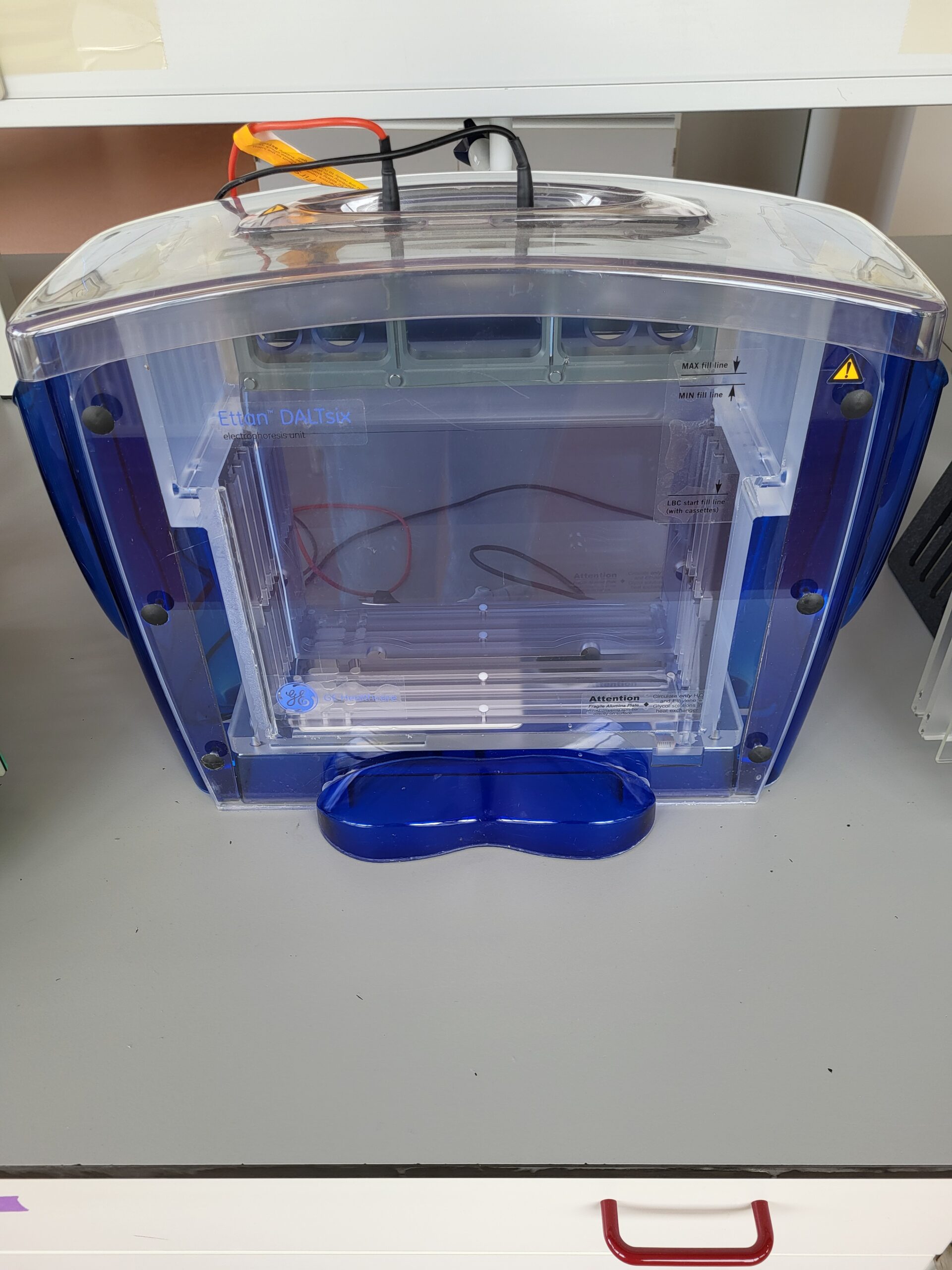

This used GE Ettan DALTsix Electrophoresis System is a large-format vertical electrophoresis system designed for second-dimension protein separation in 2-D electrophoresis and 2-D DIGE workflows.
The system accommodates up to six large-format slab gels simultaneously under identical running conditions. It can be used with both laboratory-cast and precast gels and is designed for 18 cm and 24 cm Immobiline DryStrip/IPG workflows. The integrated buffer circulation pump and heat exchanger provide efficient buffer circulation and allow temperature-controlled electrophoresis when connected to a suitable cooling circulator.
This system is supplied with a useful selection of original GE Ettan DALT accessories, including an Ettan DALT cassette rack with six gel cassettes, the original Ettan DIGE Gel Alignment Guide Kit for use with Typhoon imaging systems, and documentation as shown.
Specifications

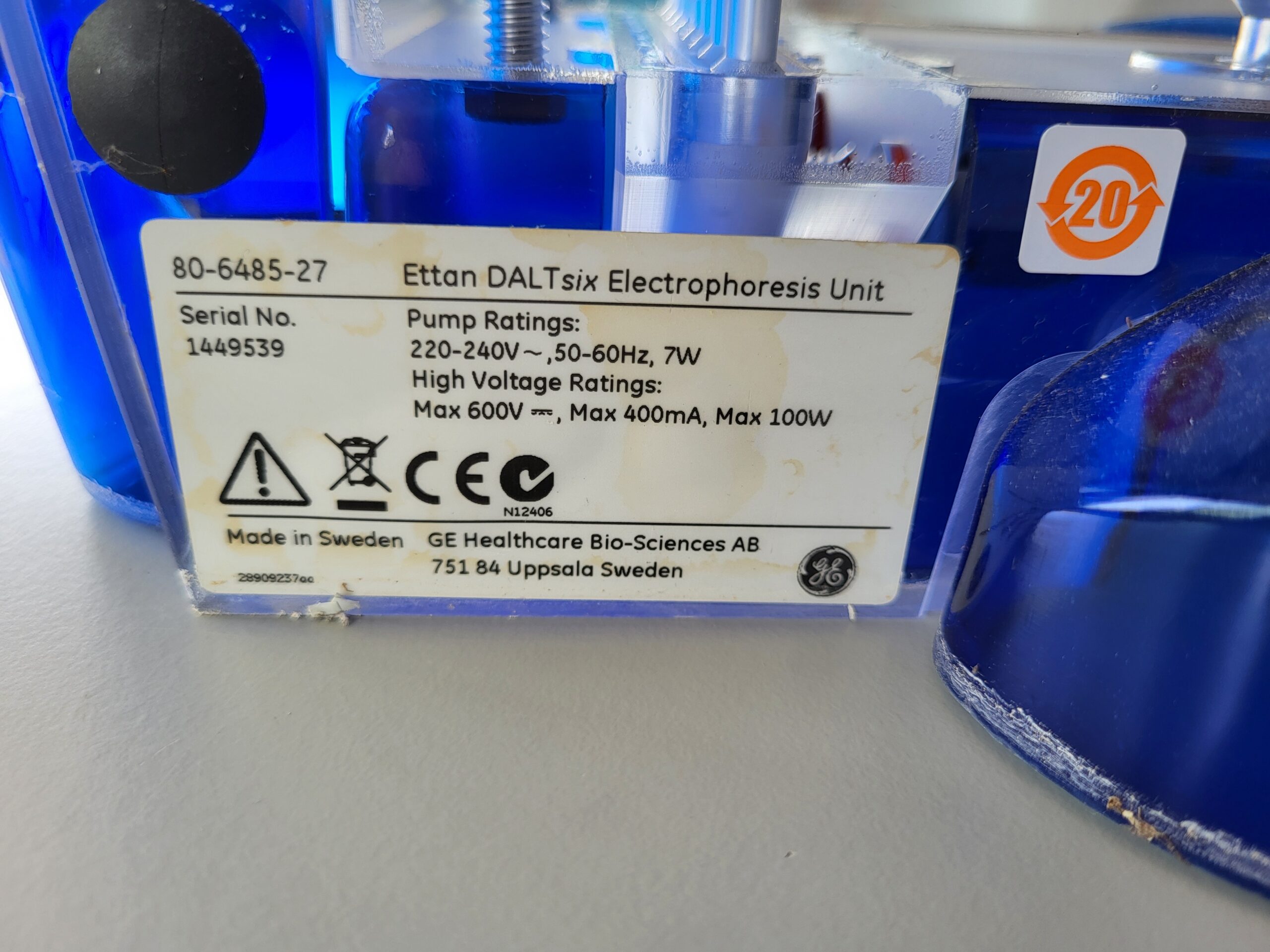

- Manufacturer: GE Healthcare Bio-Sciences
- Model: Ettan DALTsix
- Product number: 80-6485-27 / 80648527
- Instrument type: Large-format vertical electrophoresis system
- Application: 2-D electrophoresis / SDS-PAGE / 2-D DIGE
- Gel capacity: Up to 6 gels simultaneously
- Slab gel size: 25.5 × 20.5 cm
- Supported gel thickness: 1.0 or 1.5 mm
- Suitable IPG strip lengths: 18 cm and 24 cm
- Maximum voltage: 600 V DC
- Maximum current: 400 mA
- Maximum power: 100 W
- Electrophoresis buffer volume: 5.5 litres
- Integrated buffer circulation pump
- Integrated heat exchanger for temperature control
- Maximum operating temperature: 40°C
- Dimensions: 40.3 × 54.2 × 16.0 cm (H × W × D)
- Weight empty: approximately 11.1 kg
- Weight filled: approximately 16.8 kg
- Pump power supply: 220–240 V, 50–60 Hz
- Pump power consumption: 7 W
- External electrophoresis power supply connection
- Country of manufacture: Sweden

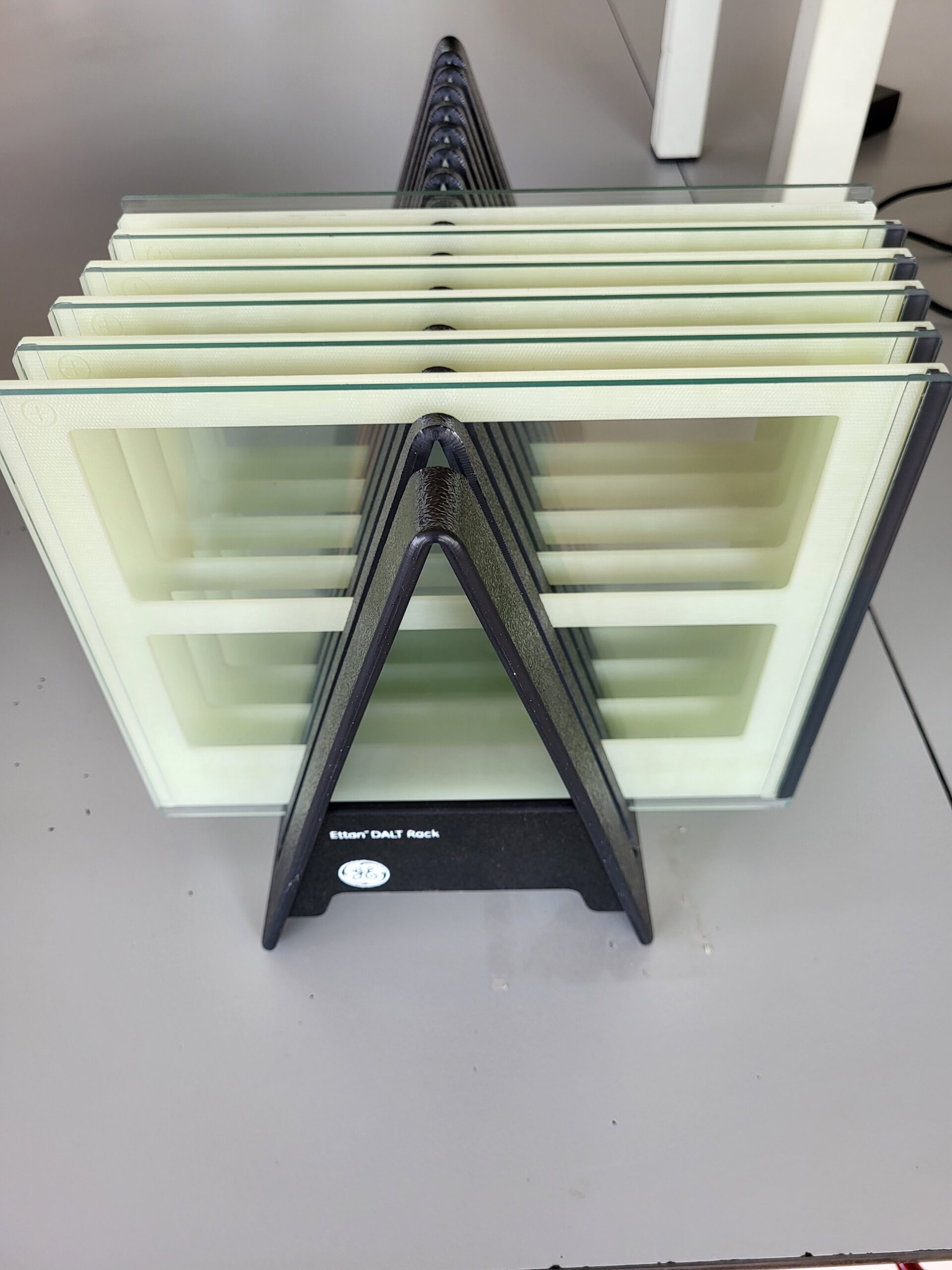

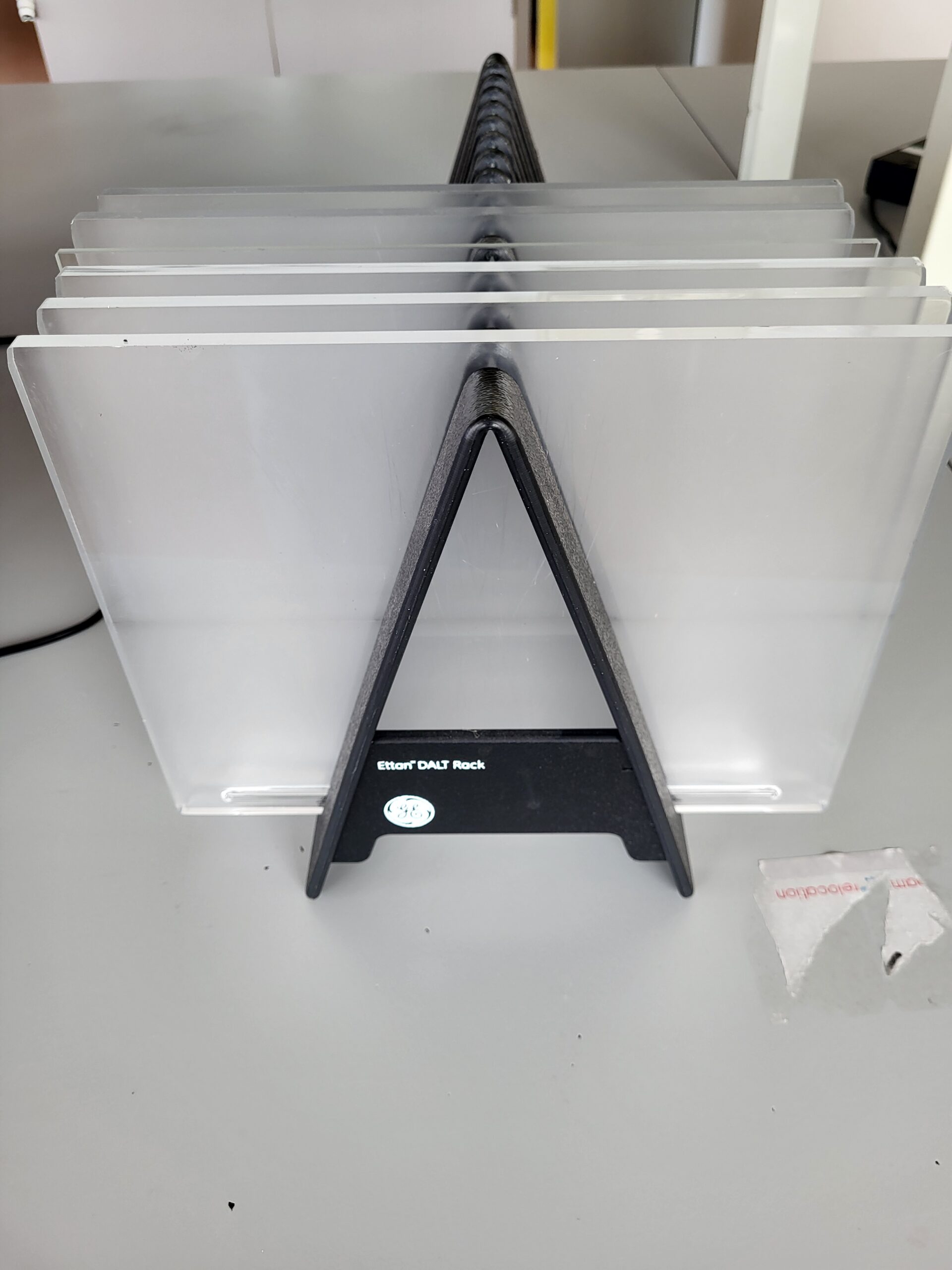

- Includes: Ettan DALT cassette rack
- Includes: 6 large-format gel cassettes

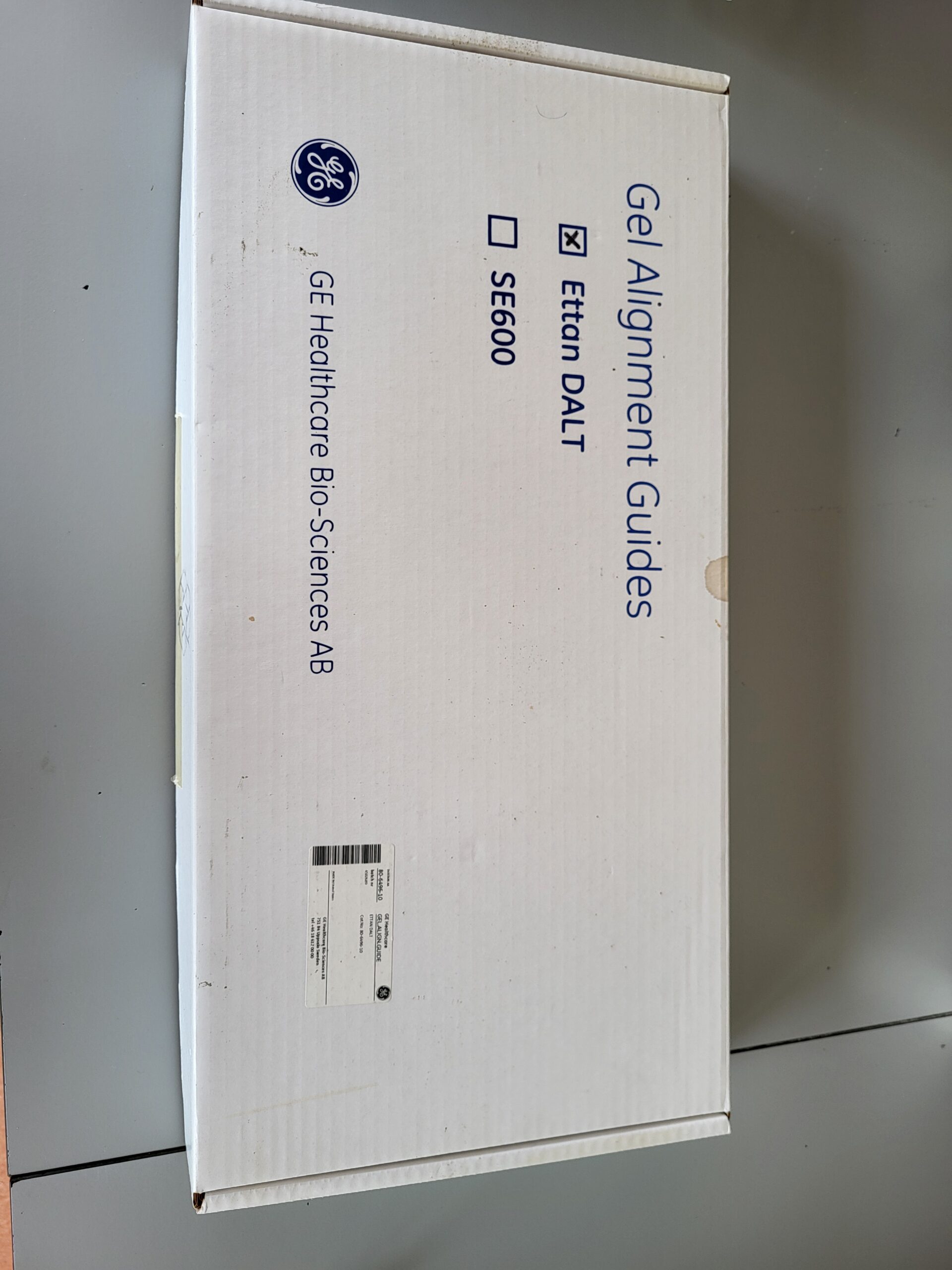

- Includes: Ettan DIGE Gel Alignment Guide Kit for Ettan DALT

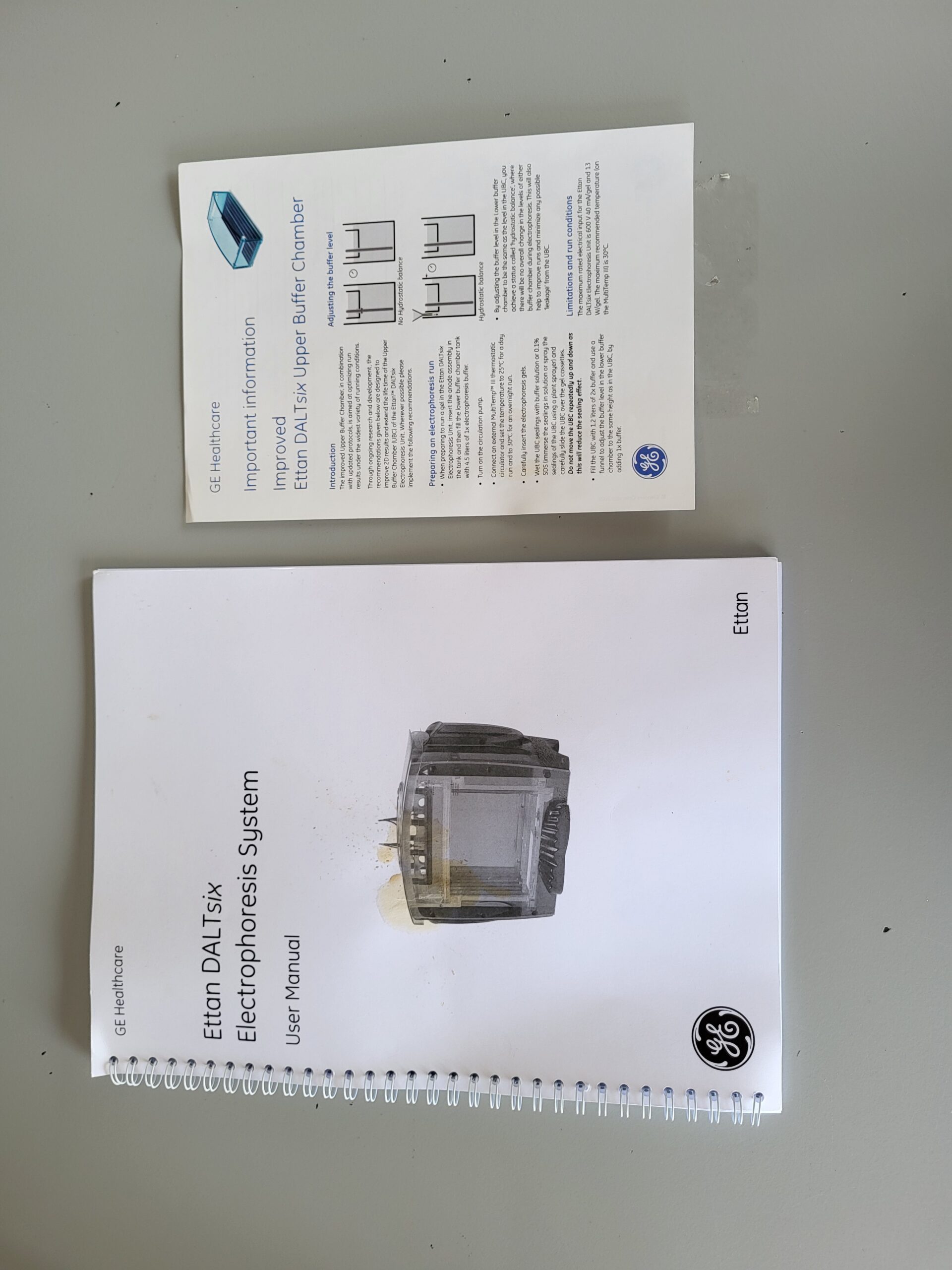

- Includes: Original Ettan DALTsix user manual and documentation
