Description

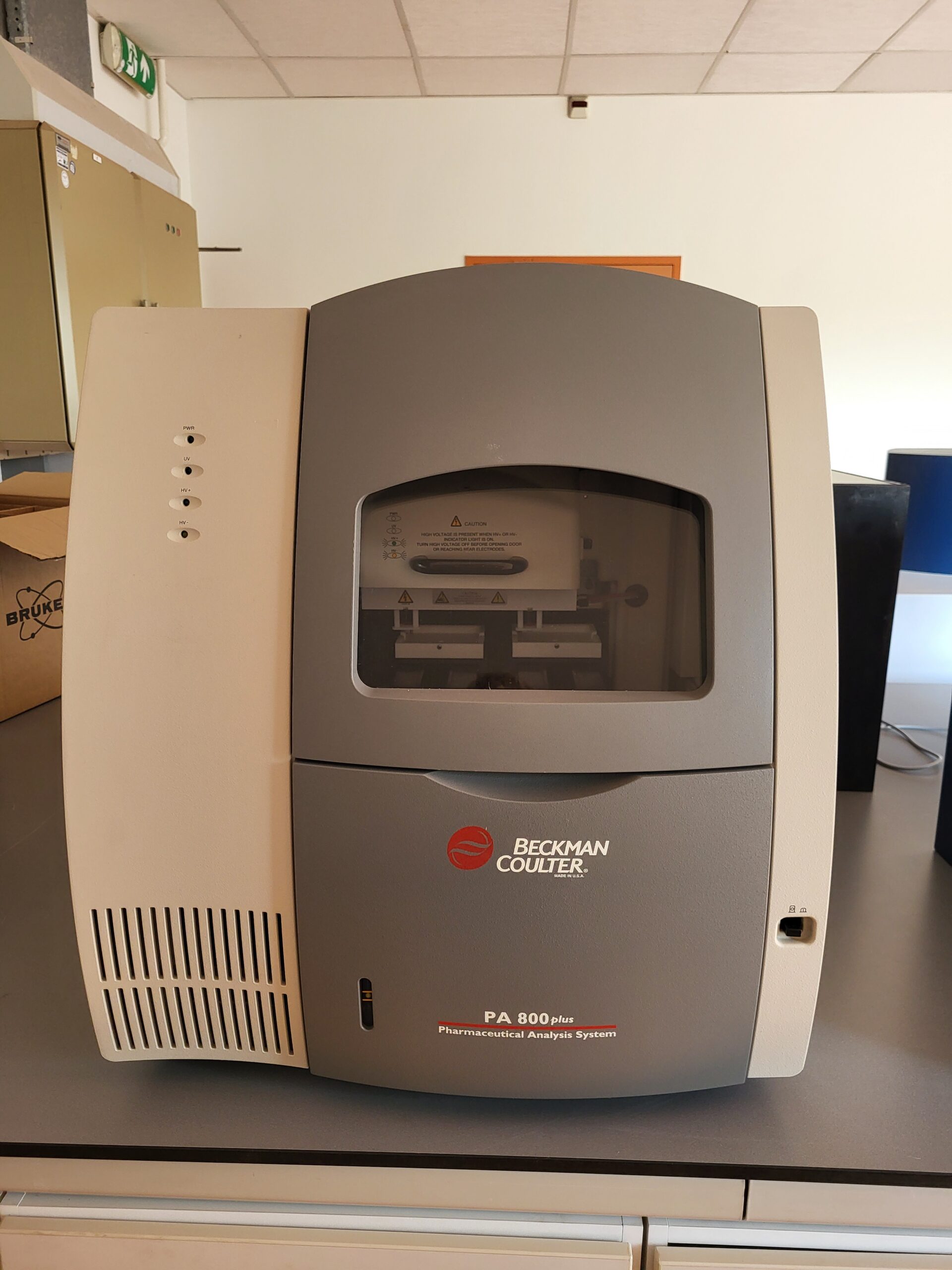

This used Beckman Coulter SCIEX PA 800 Plus capillary electrophoresis system is an automated Pharmaceutical Analysis System designed for the quantitative characterization of proteins, biopharmaceuticals, glycans and other biomolecules.

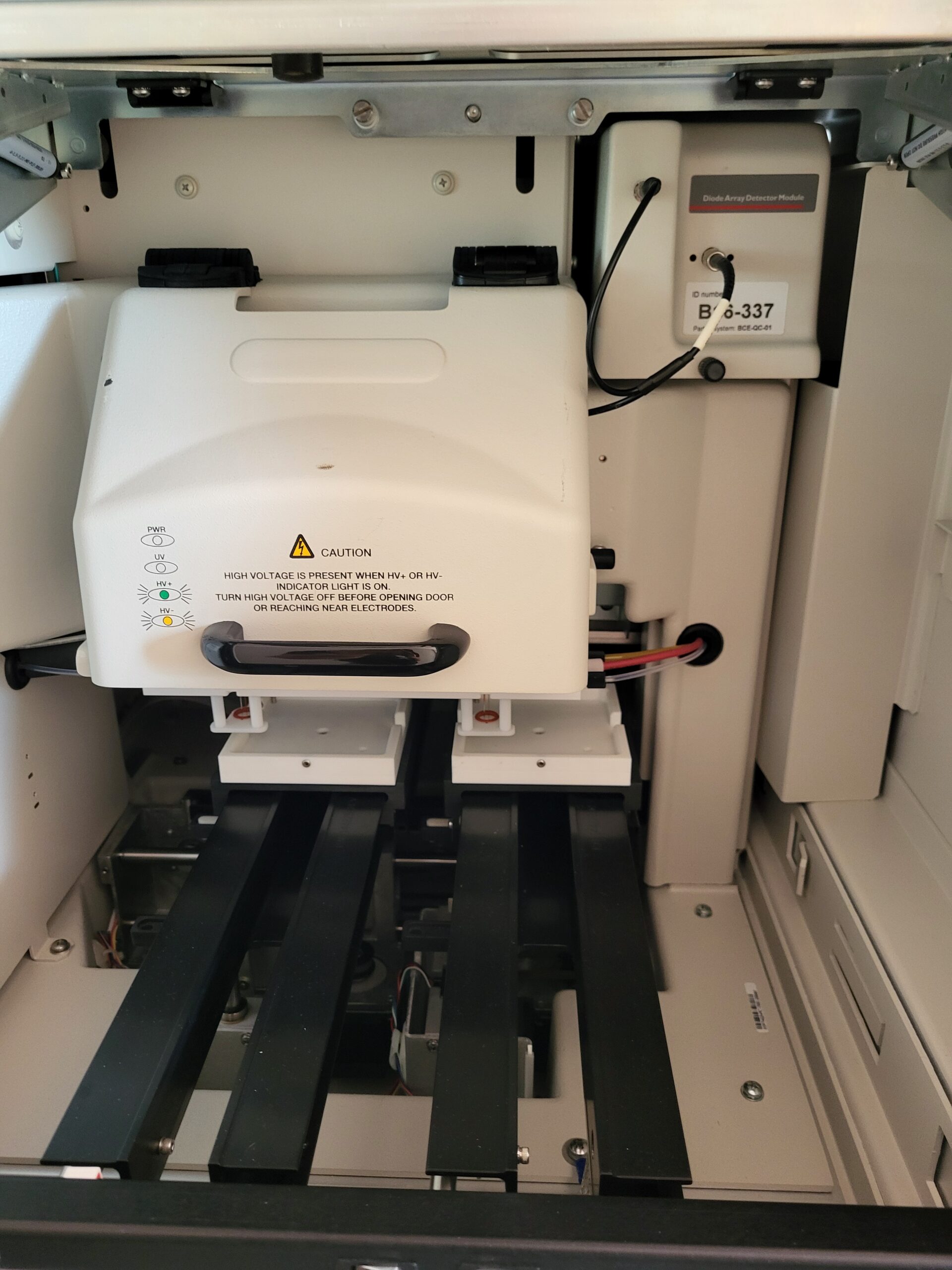

The PA 800 Plus can be used for applications such as CE-SDS protein purity and molecular-weight analysis, capillary zone electrophoresis, capillary isoelectric focusing for charge-heterogeneity analysis and carbohydrate or glycan profiling. The liquid-cooled capillary system provides accurate separation-temperature control, while the automated sample-handling system supports both sample vials and 96-well plates.
This system was manufactured in December 2012 and is equipped with both a UV detector module and a diode-array detector module. The PDA detector allows wavelength selection across a range of 190 to 600 nm, while the interchangeable detector design provides flexibility for different analytical methods.
Also included is the original USB licence dongle which can be used in combination with a SCIEX PA 800 Plus Empower Driver version 1.3 kit. The driver enables control of the PA 800 Plus through Waters Empower chromatography data software. The USB licence key is required for instrument control and data acquisition. It ought to be easy to implement the system in an organisation which uses Waters Empower for data handling.
The instrument is in good cosmetic condition with normal signs of previous use. We couldn’t test it thoroughly because we don’t have the needed Empower Software.
Applications
- CE-SDS protein purity and molecular-weight analysis
- Protein charge-heterogeneity analysis
- Capillary isoelectric focusing, cIEF
- Capillary zone electrophoresis, CZE
- Glycan and carbohydrate profiling
- Analysis of proteins, peptides and other biomolecules
- Pharmaceutical and biopharmaceutical method development
- Research, process-development and quality-control laboratories
Specifications
- Manufacturer: Beckman Coulter / AB SCIEX
- Model: PA 800 Plus
- Instrument type: automated capillary electrophoresis system
- Description: Pharmaceutical Analysis System
- Catalogue number: A74603

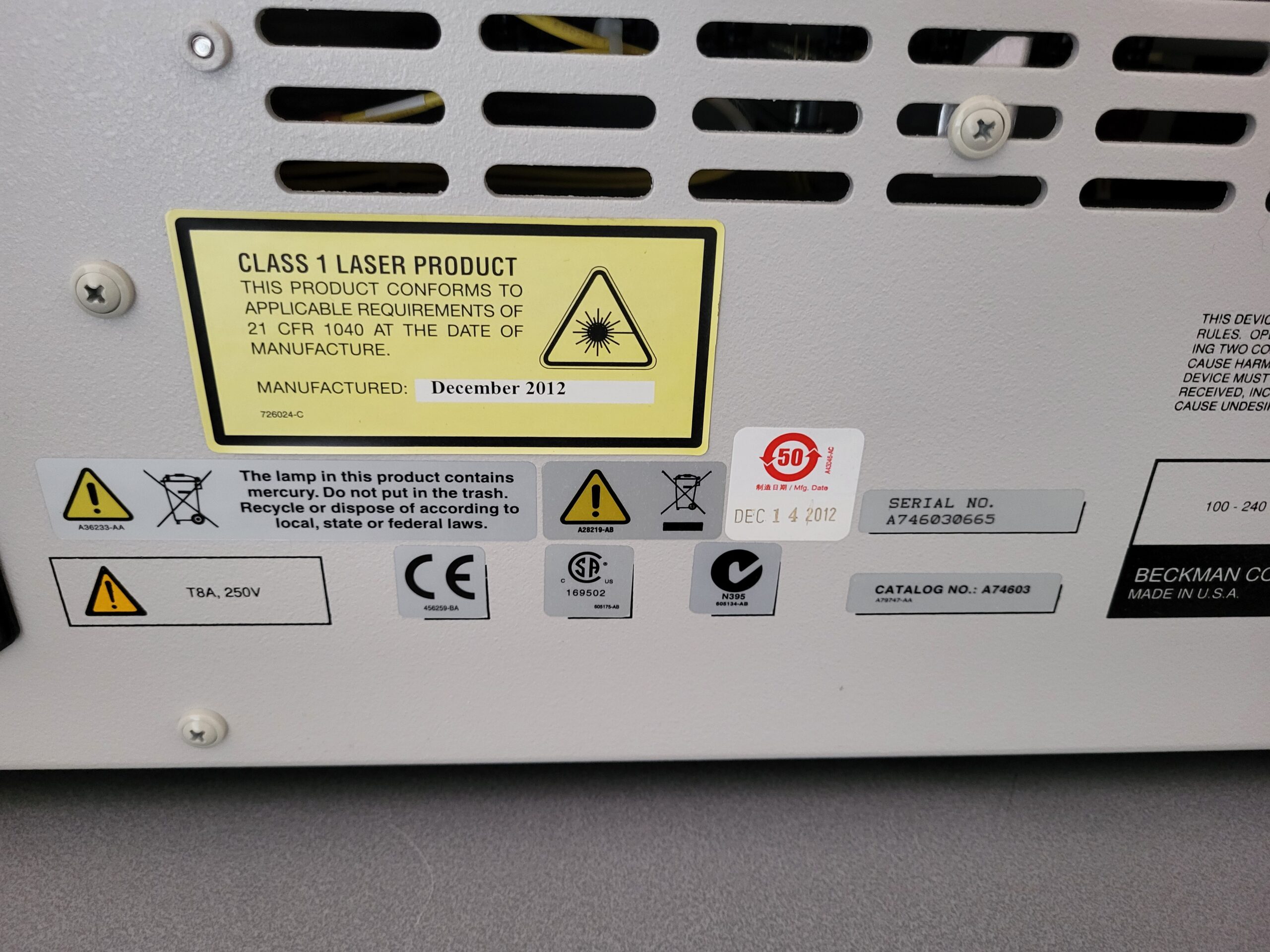

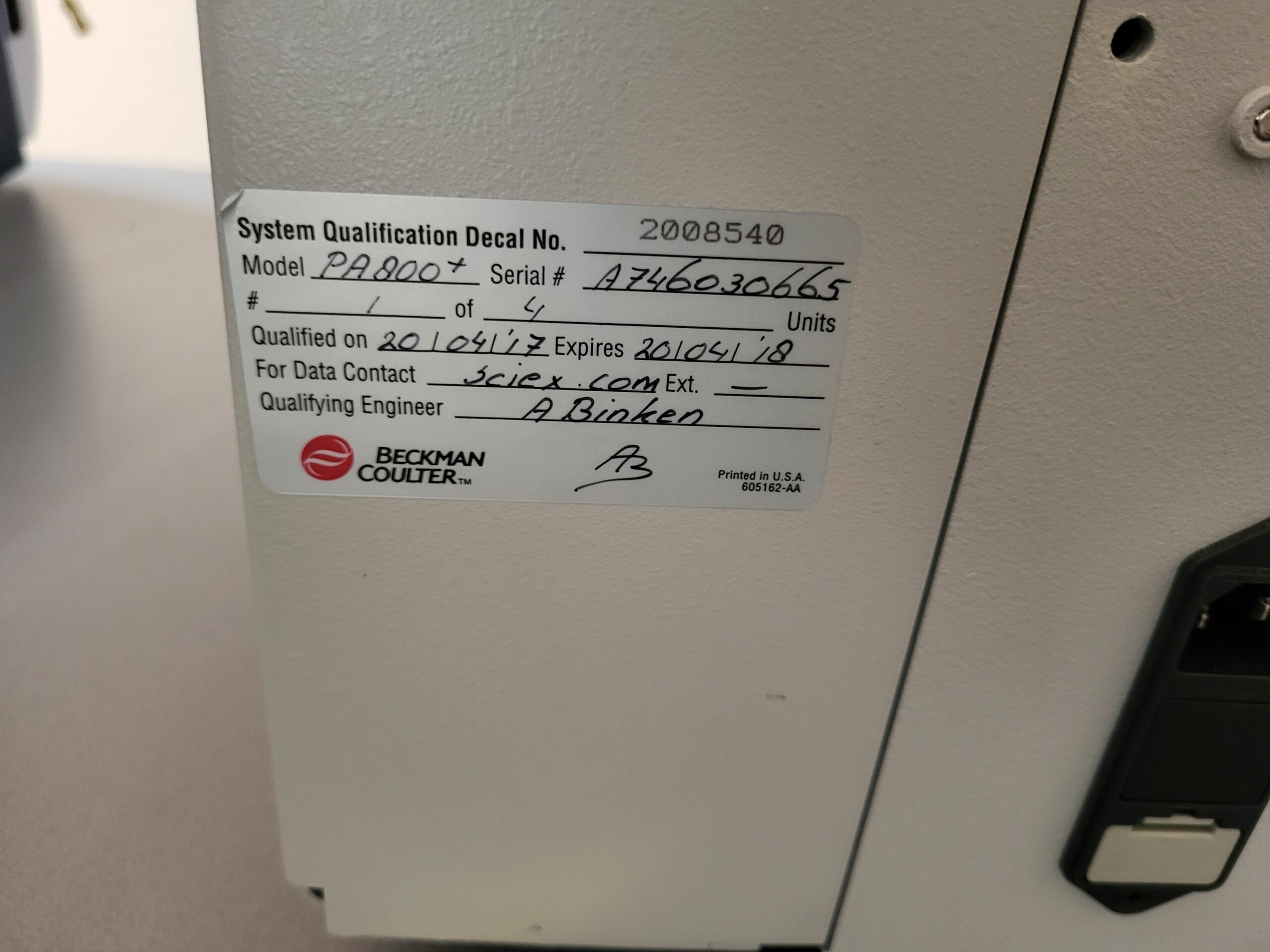

- Serial number: A746030665
- Manufacturing date: December 2012
- Maximum separation voltage: 30 kV
- Voltage range: 1 to 30 kV
- Voltage adjustment: 100 V increments
- Maximum current: 300 µA
- Current range: 3 to 300 µA
- Pressure injection range: 0.1 to 25 psi
- Vacuum injection range: 0.1 to 5 psi
- Maximum rinsing pressure: 100 psi
- Capillary-temperature range: 10°C below ambient to 60°C
- Minimum capillary-temperature setting: 15°C
- Sample-temperature range: 20°C below ambient to 60°C
- Minimum sample temperature: 4°C
- Sample trays: two inlet/outlet sample trays
- Sample capacity per tray: 48 universal vials or one 96-well plate
- Buffer trays: two trays with 36 vial positions each
- Capillary cooling: recirculating liquid cooling
- Polarity: normal or reverse
- Safety: high-voltage and door-interlock protection
UV detector specifications
- Detector type: filter-based UV absorbance detector
- Standard filter: 214 nm
- Additional filter positions: six
- Nominal filter bandwidth: 25 nm
- Light source: 30 W pre-aligned deuterium lamp
- Nominal lamp lifetime: 1,000 hours
Diode-array detector specifications
- Detector type: 256-element photodiode array
- Wavelength range: 190 to 600 nm
- Wavelength accuracy: 2 nm
- Scan collection frequency: 0.5 to 32 Hz
- Light source: 30 W pre-aligned deuterium lamp
- Nominal lamp lifetime: 1,000 hours
Physical specifications
- Dimensions with cover closed: 73.7 × 63.5 × 72.4 cm
- Height with cover open: 99.1 cm
- Weight: approximately 85.3 kg
- Electrical supply: 100–240 V AC
- Frequency: 50/60 Hz
- Maximum heat dissipation: approximately 400 W
Included
- Beckman Coulter SCIEX PA 800 Plus main instrument

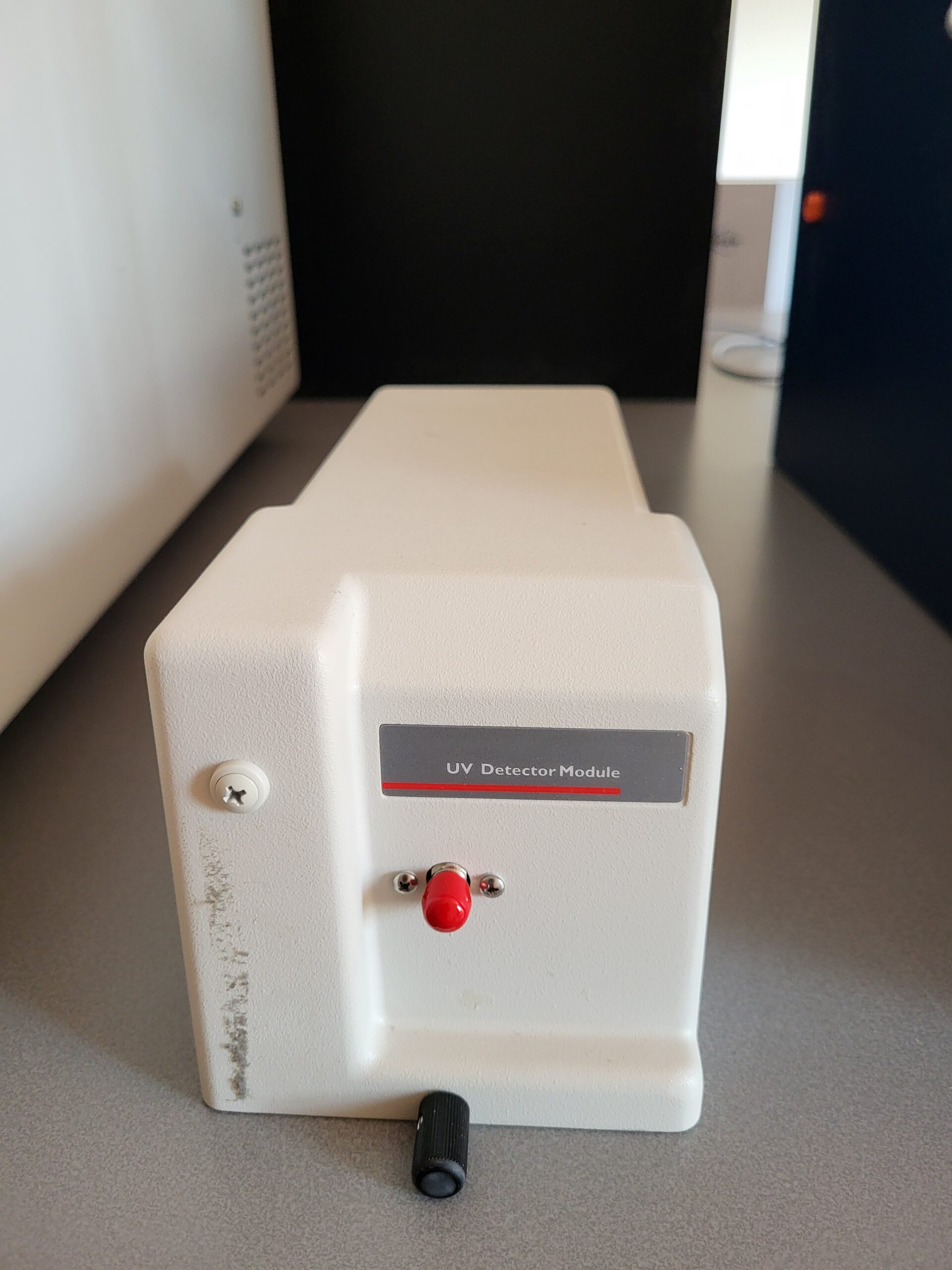

- UV detector module

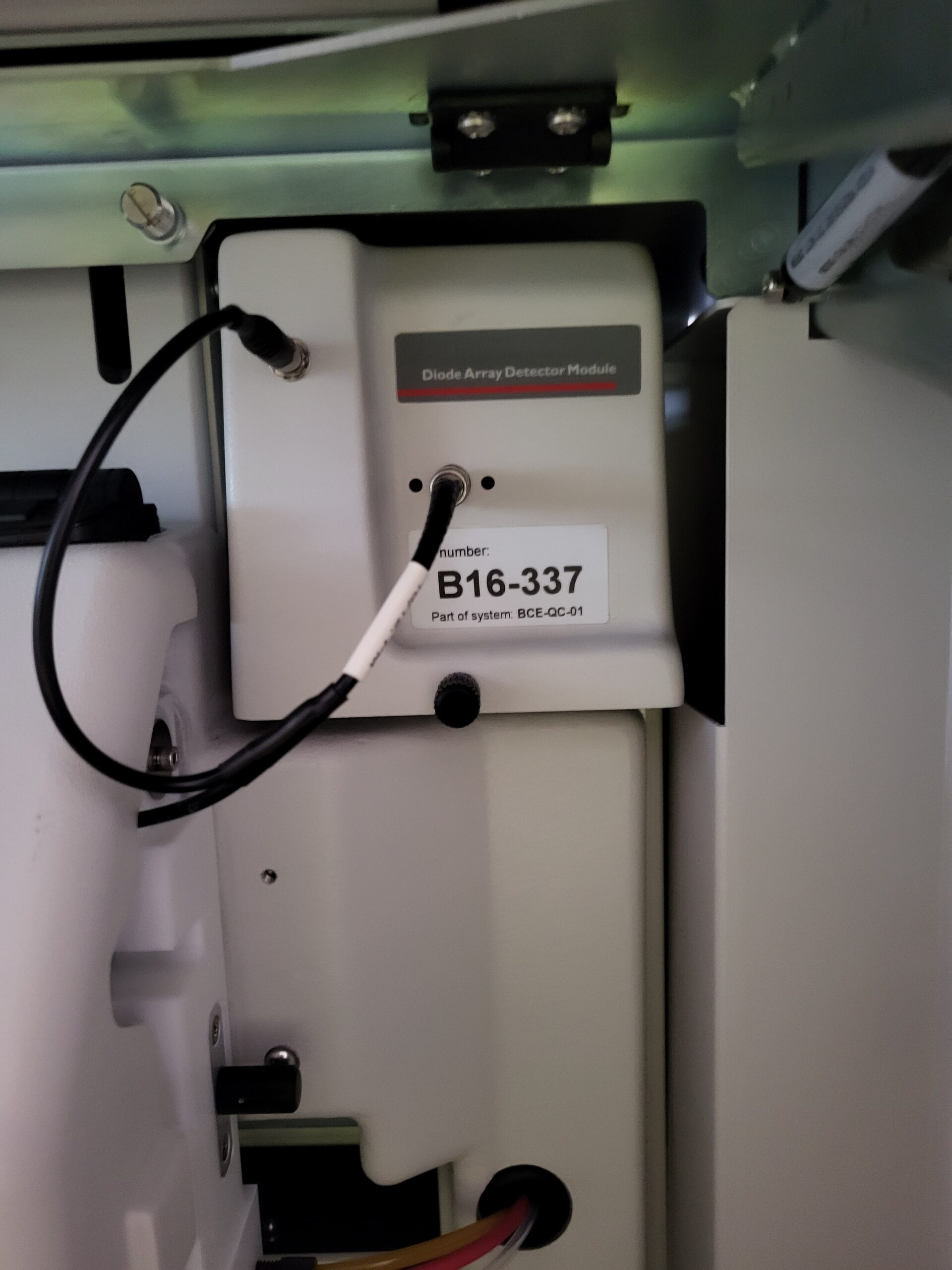

- Diode-array detector module

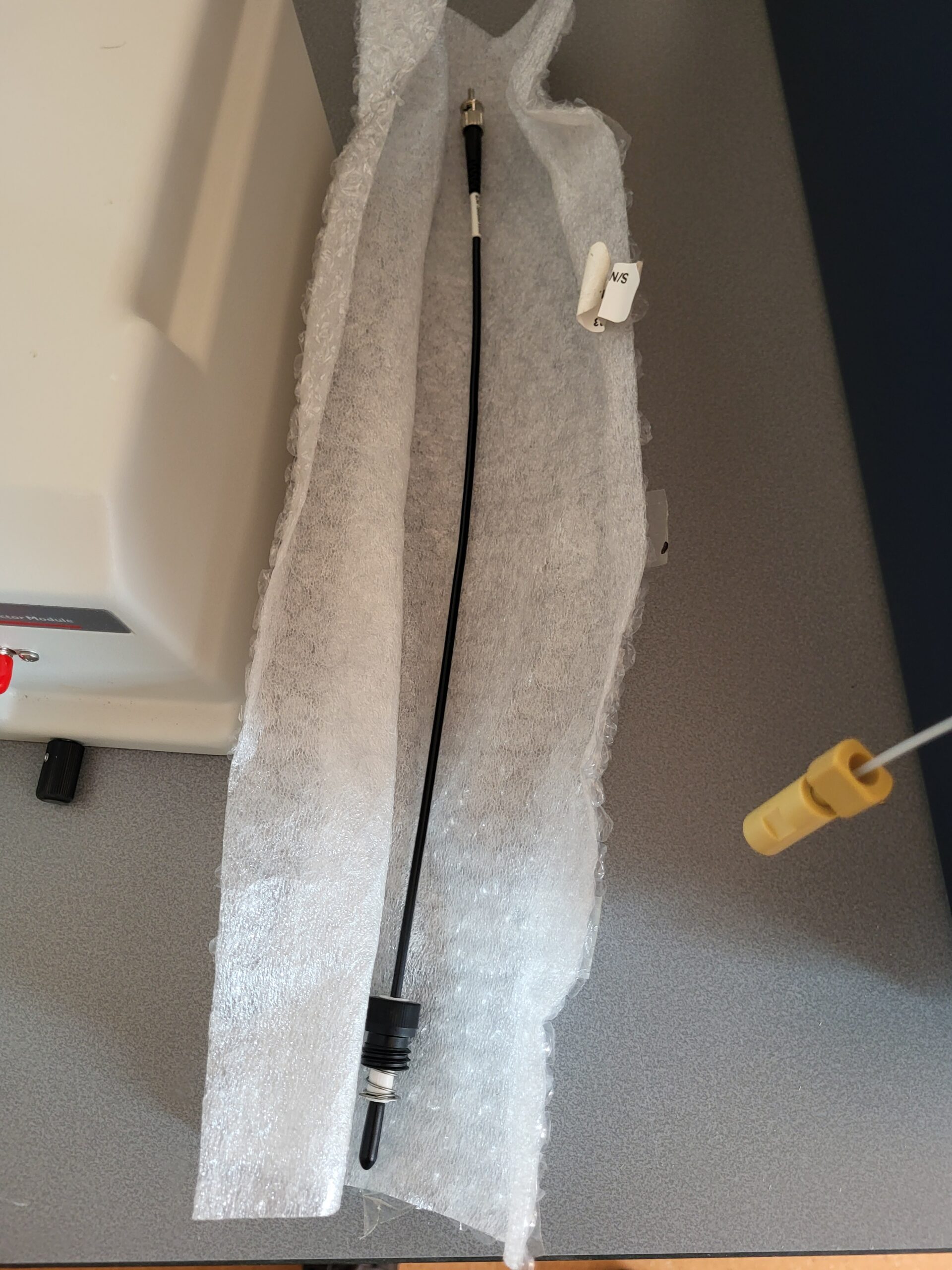

- Detector fibre-optic cables and associated accessories shown

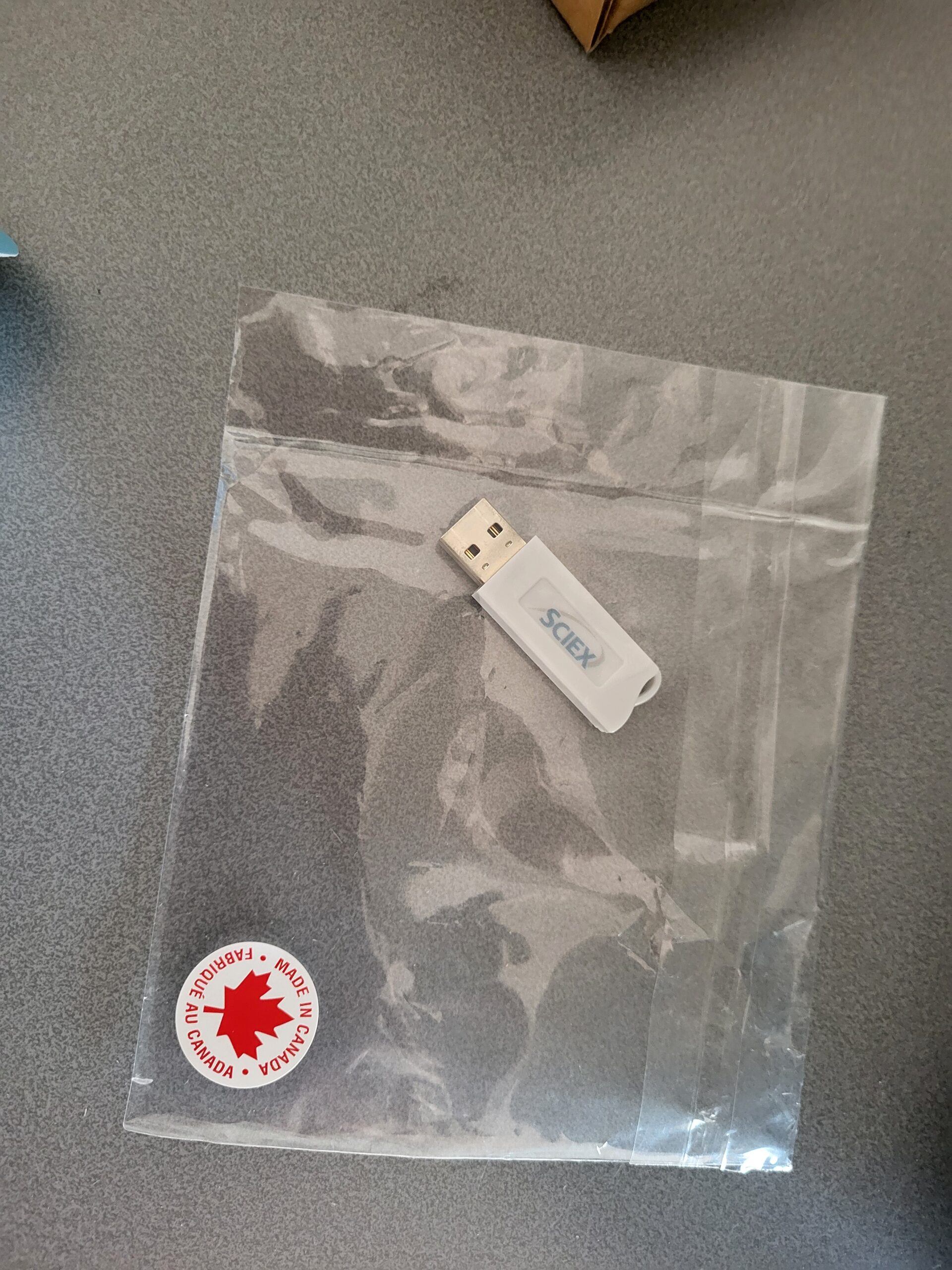

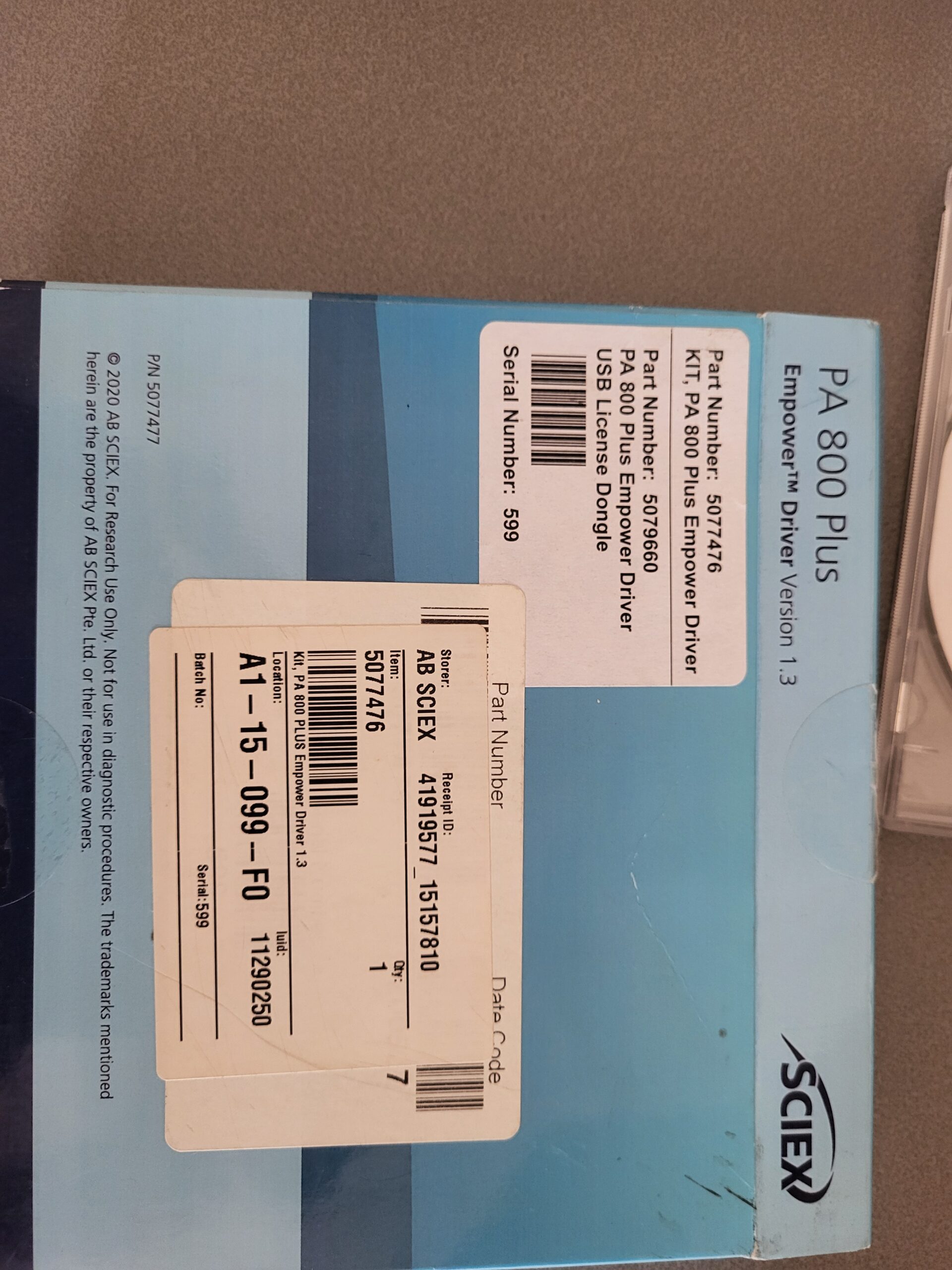

- USB licence dongle, part number 5079660
- USB licence serial number 599
- PA 800 Plus Empower Driver (free downloadable)
- Empower GPIB interface and driver, NI-488.2

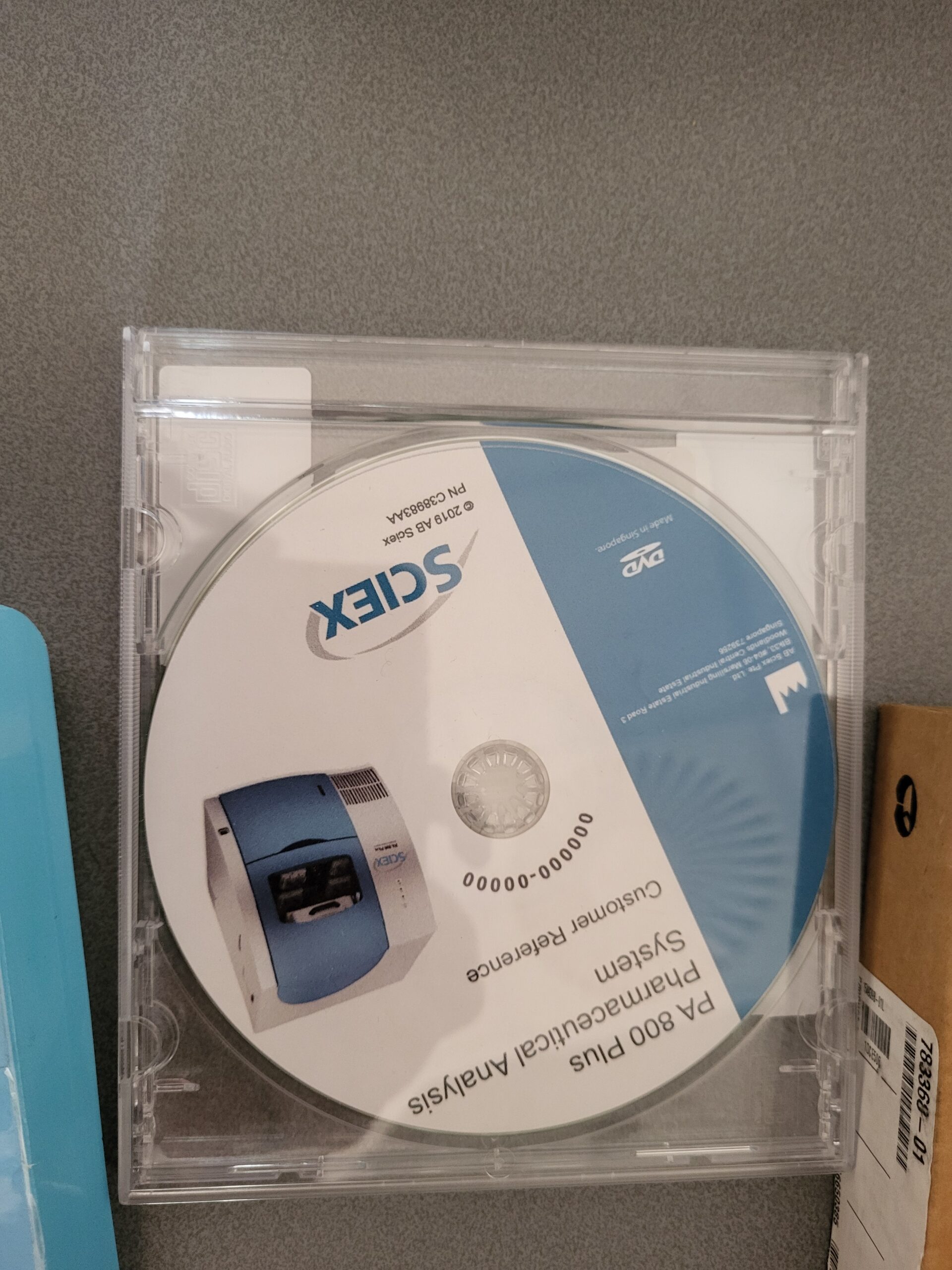

- PA 800 Plus Customer Reference DVD
- Communication interface and cables shown in the photographs
- Only the components shown or specifically mentioned are included
