Description
This used Jasco CO-2067 HPLC column oven/cooler is a compact HPLC column heater/cooler designed for precise temperature control of analytical chromatography columns. The CO-2067 uses an aluminium block design with Peltier temperature control, allowing both heating and cooling relative to ambient temperature.
The JASCO CO-2067 Plus can accommodate up to two 15 cm or 25 cm analytical columns and provides accurate digital PID temperature control. The actual and set temperatures are shown on the LCD display, and the instrument includes self-check and safety functions for abnormal temperature conditions, flammable solvent leaks, memory errors and DC power voltage faults. The unit can be integrated with compatible JASCO HPLC systems via LC-NET.
The unit is in a good operational state.
Specifications
- Manufacturer: JASCO Corporation
- Model: CO-2067 Plus
- Type: Intelligent Column Oven / HPLC column heater-cooler

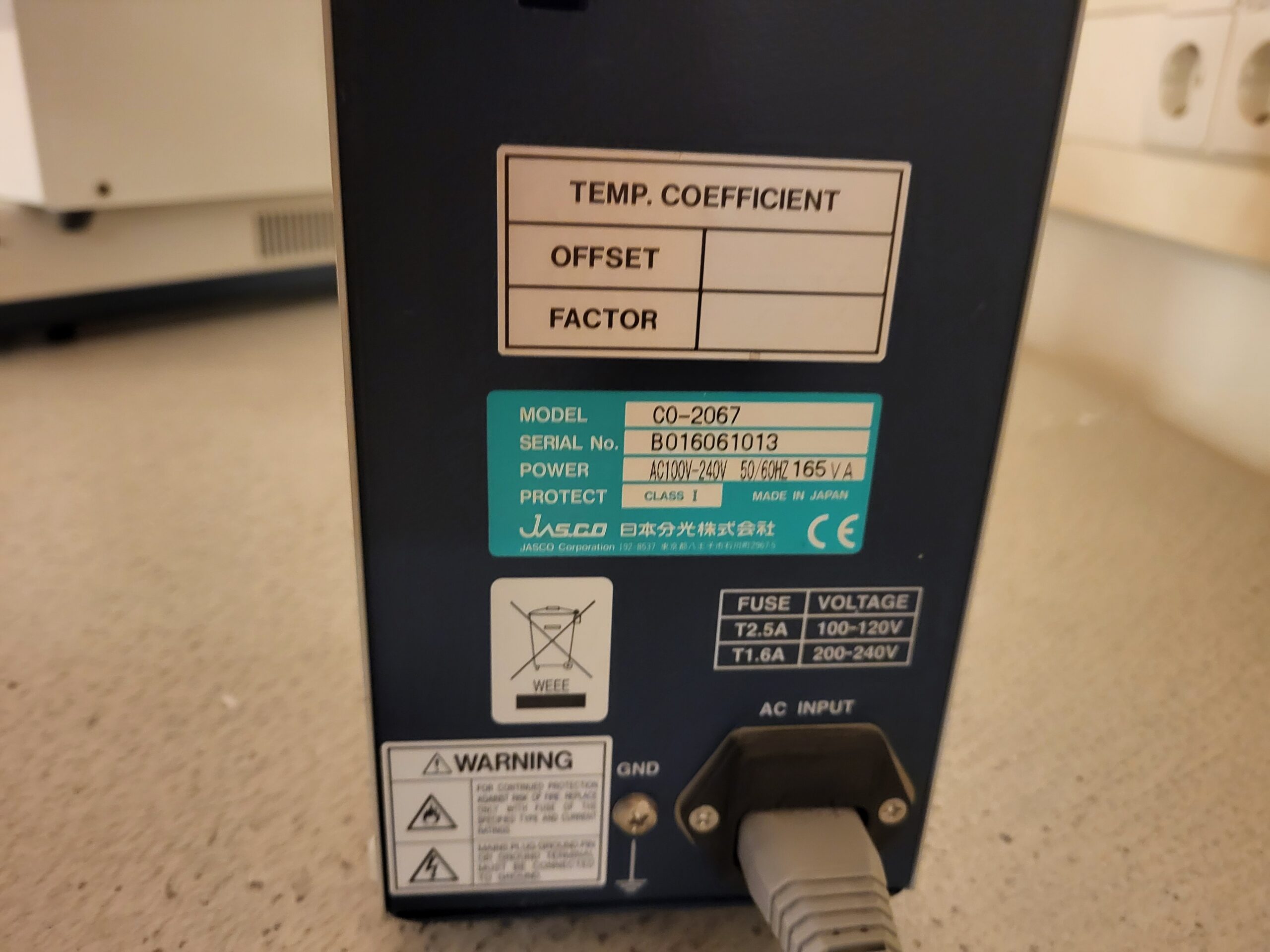

- Serial number: B016061013
- Temperature control method: digital PID control by microprocessor
- Temperature control technology: aluminium block with Peltier elements
- Temperature control range: -15°C below ambient temperature to +65°C
- Temperature setting range: +4°C to +65°C
- Temperature setting increment: 0.1°C
- Temperature control precision: ±0.1°C at 40°C

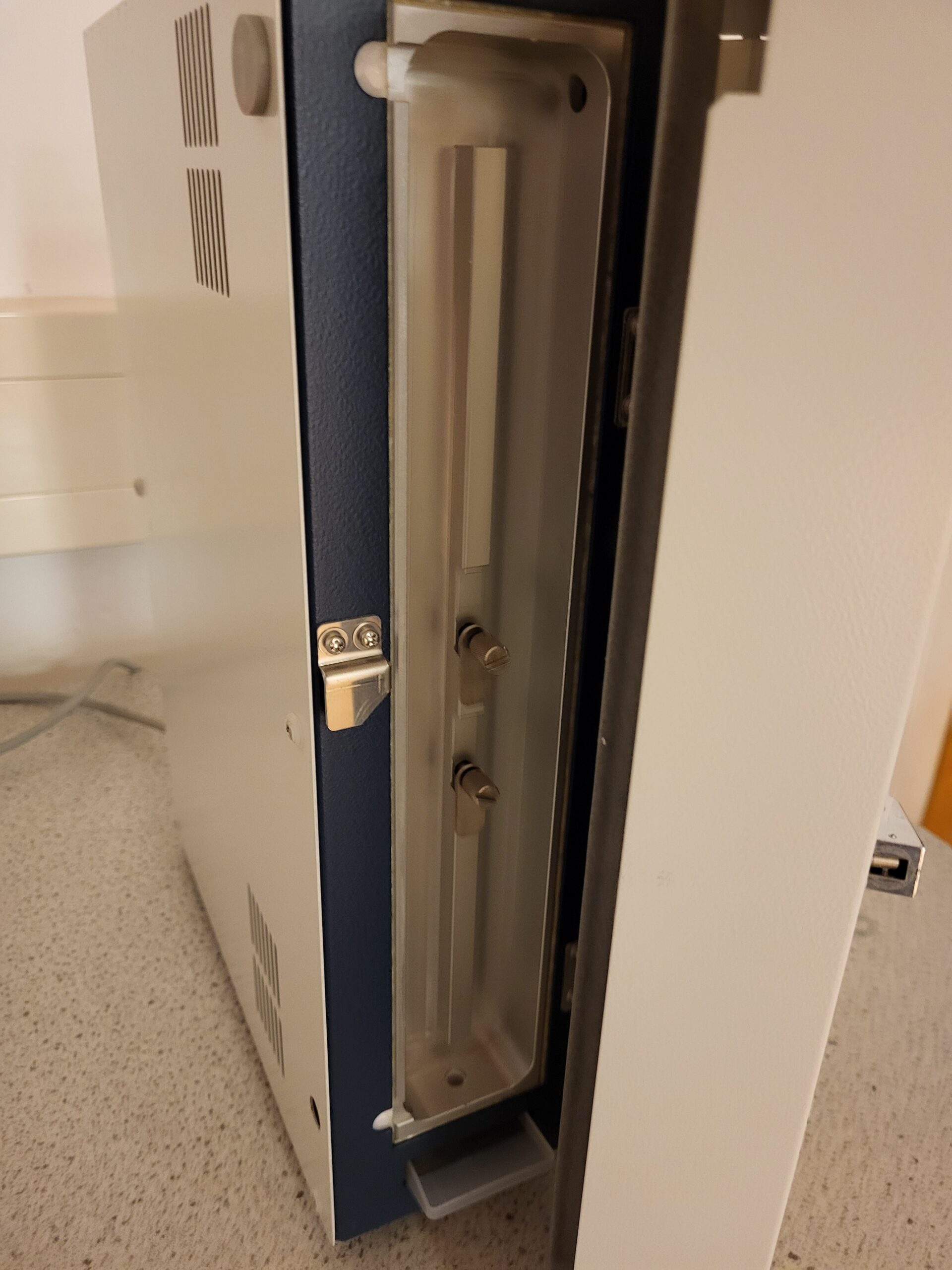

- Column capacity: up to 2 columns, 15 cm or 25 cm length
- Maximum column dimensions: 50 x 315 x 18 mm
- Display: LCD display showing actual and set temperature
- Time program: 5 files
- Program steps: 64 steps per file
- Program setting items: temperature
- Input/output terminals: trouble stop input/output, program start input and LC-NET
- Self-check / self-diagnostics: abnormal temperature, flammable solvent leak, memory and DC power voltage
- Safety function: heater power shut-off in case of abnormal high temperature or flammable solvent leak
- Dimensions W x D x H: 105 x 320 x 385 mm
- Weight: approximately 8.6 kg
- Power supply: AC 100–240 V, 50/60 Hz
- Power consumption: 165 VA
- Fuse rating: T2.5 A for 100–120 V / T1.6 A for 200–240 V
- Made in Japan
