Description

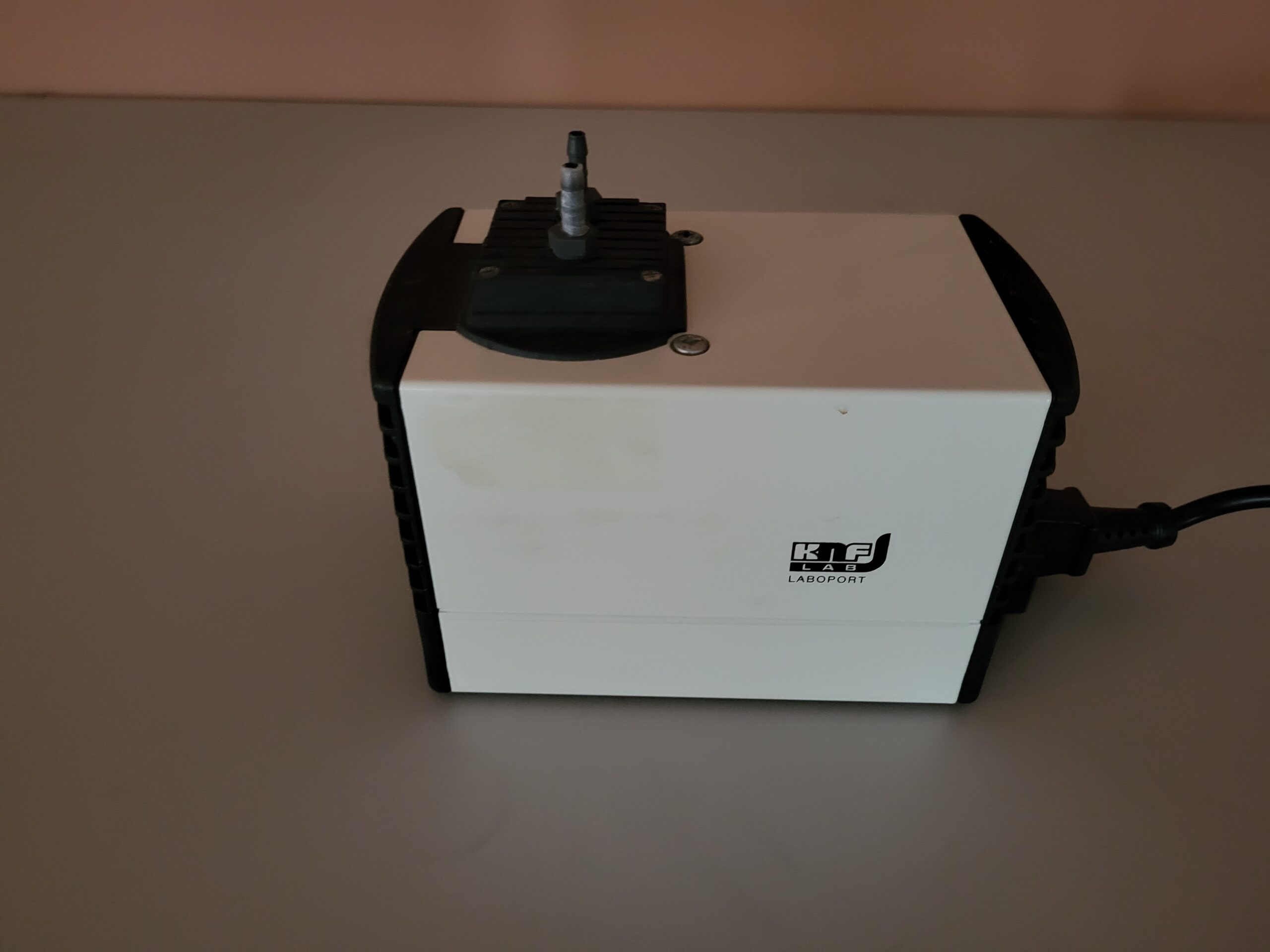

This used KNF Chemically Resistant Diaphragm Vacuum Pump is a compact oil-free laboratory pump designed for evacuation, transfer and compression of gases. The pump is suitable for a wide range of laboratory applications, including filtration, aspiration, gas transfer, vacuum applications and handling of neutral or mildly aggressive gases and vapours.
This used KNF Chemically Resistant Diaphragm Vacuum Pump features a chemically resistant pump head, PTFE-coated diaphragm and FFPM valves. Its compact design, oil-free operation and low maintenance requirements make it well suited for routine laboratory use where clean and reliable vacuum or pressure generation is required. The unit is in a good operational state.
Specifications
- Manufacturer: KNF Neuberger
- Model: LABOPORT N 86 KT.18
- Type: chemically resistant diaphragm vacuum pump
- Serial / No.: 2.0597760
- Manufacturing date: 01/2005
- Flow rate at atmospheric pressure: 5.5 l/min
- Ultimate vacuum: 160 mbar abs.
- Maximum operating pressure: 2.5 bar
- Pump head material: PPS
- Diaphragm material: PTFE-coated
- Valve material: FFPM
- Hose connection: ID 4 mm
- Motor protection: IP20
- Electrical supply: 230 V, 50 Hz
- Current rating: 0.65 A according to type plate
- Power rating: 60 W
- Fuse: T 1.0 A
- Permissible media and ambient temperature: +5°C to +40°C
- Dimensions W x H x D: 90 x 141 x 164 mm
- Weight: approximately 1.9 kg
- Made in France
- Applications: laboratory vacuum, filtration, aspiration, gas transfer and pressure applications
