Description

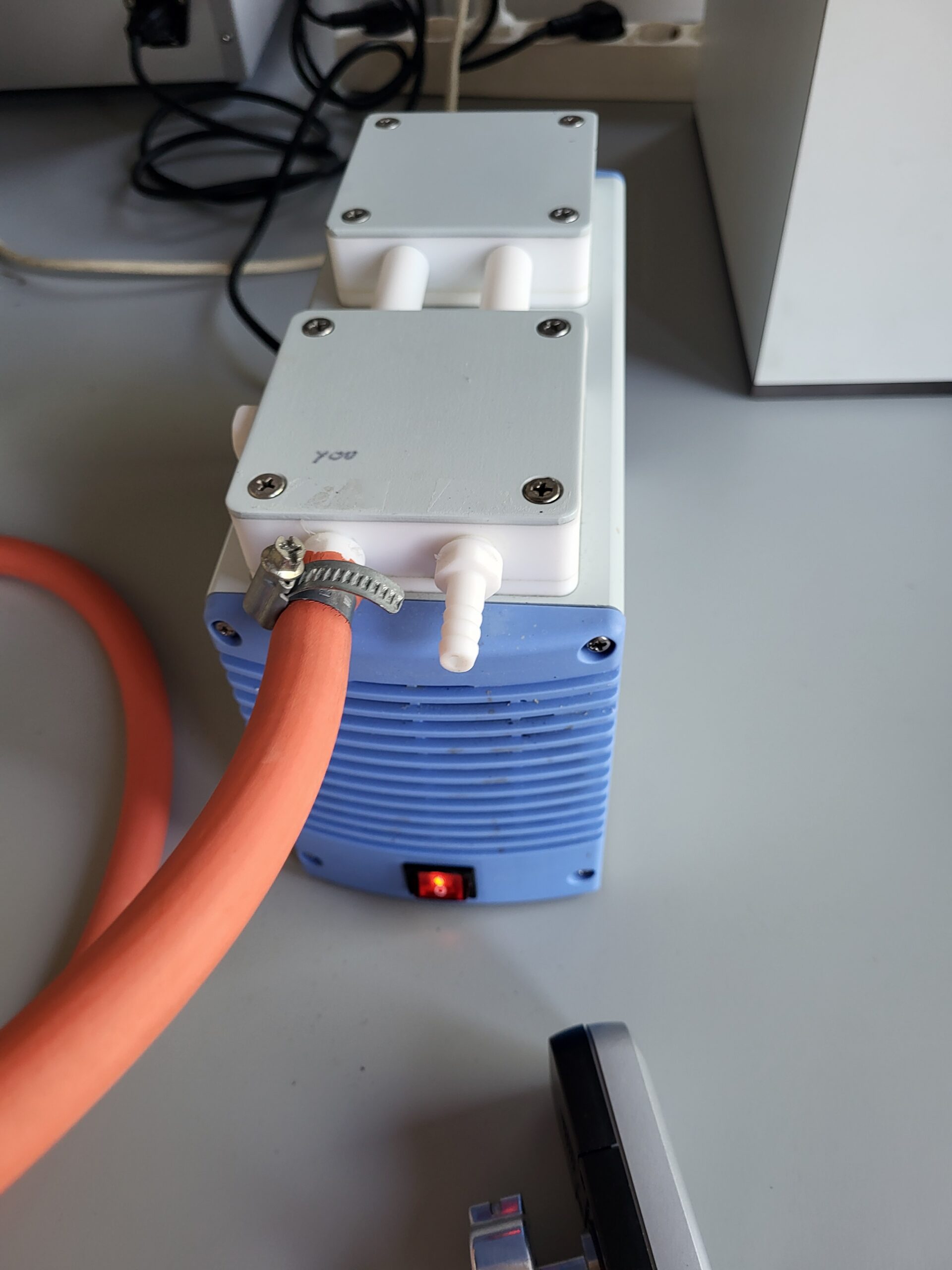

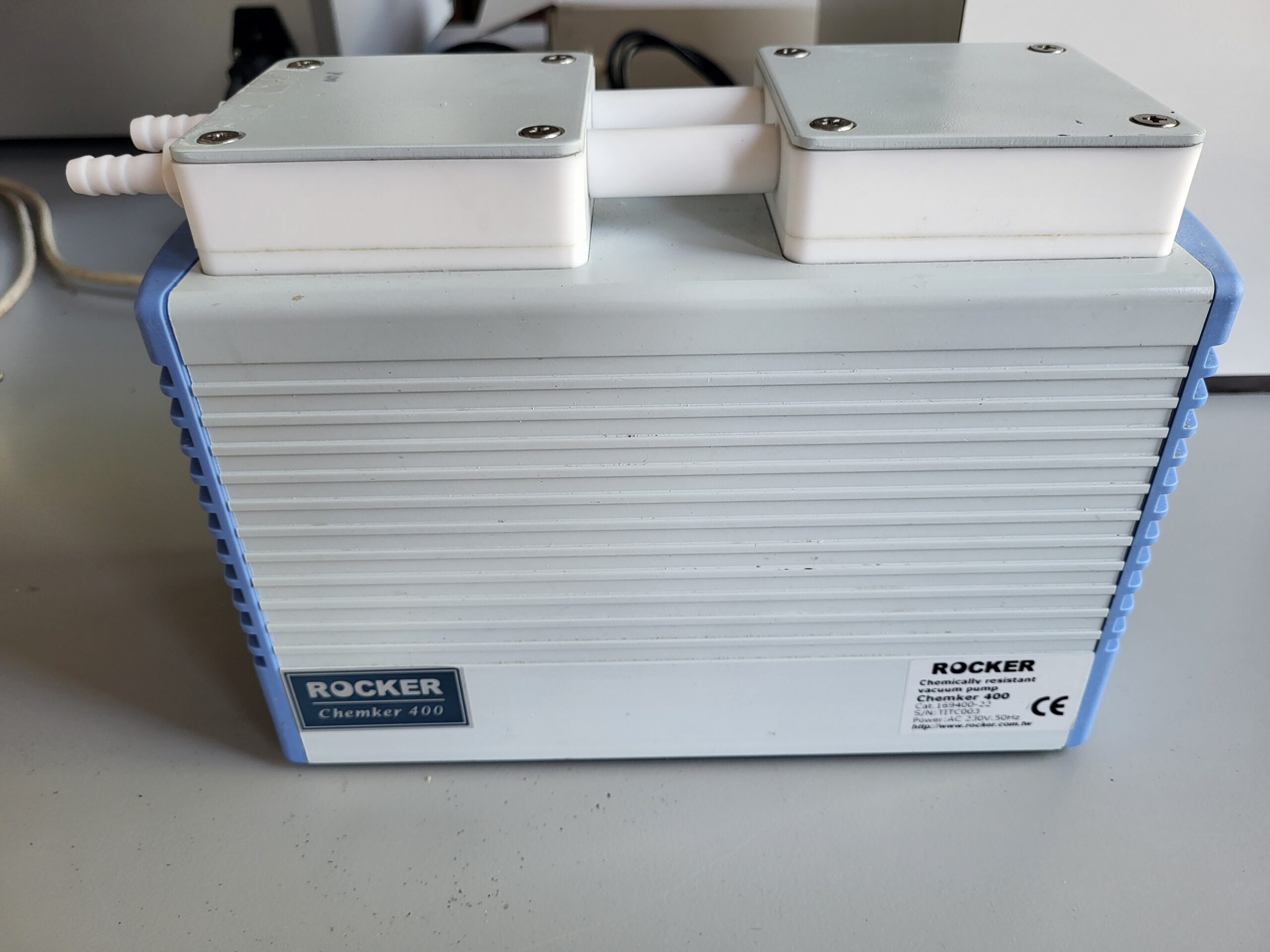

This used Rocker Chemker 400 Chemical Resistant Vacuum Pump is an oil-free laboratory diaphragm vacuum pump designed for chemically resistant vacuum applications. The pump is suitable for vacuum filtration, gel electrophoresis, solid phase extraction, solvent purification, degassing and general laboratory vacuum supply where resistance to corrosive vapours is required.
The Chemker 400 uses chemically resistant PTFE wetted parts and an oil-free diaphragm pump design, reducing contamination risk and maintenance compared with oil-sealed vacuum pumps. The direct-drive motor provides low vibration and quiet operation, while the thermal protection system helps protect the pump against overheating during use.
The pump was tested and the specs could be reached. It is in good working condition.
Specifications
- Manufacturer: Rocker Scientific
- Model: Chemker 400
- Type: chemically resistant laboratory diaphragm vacuum pump

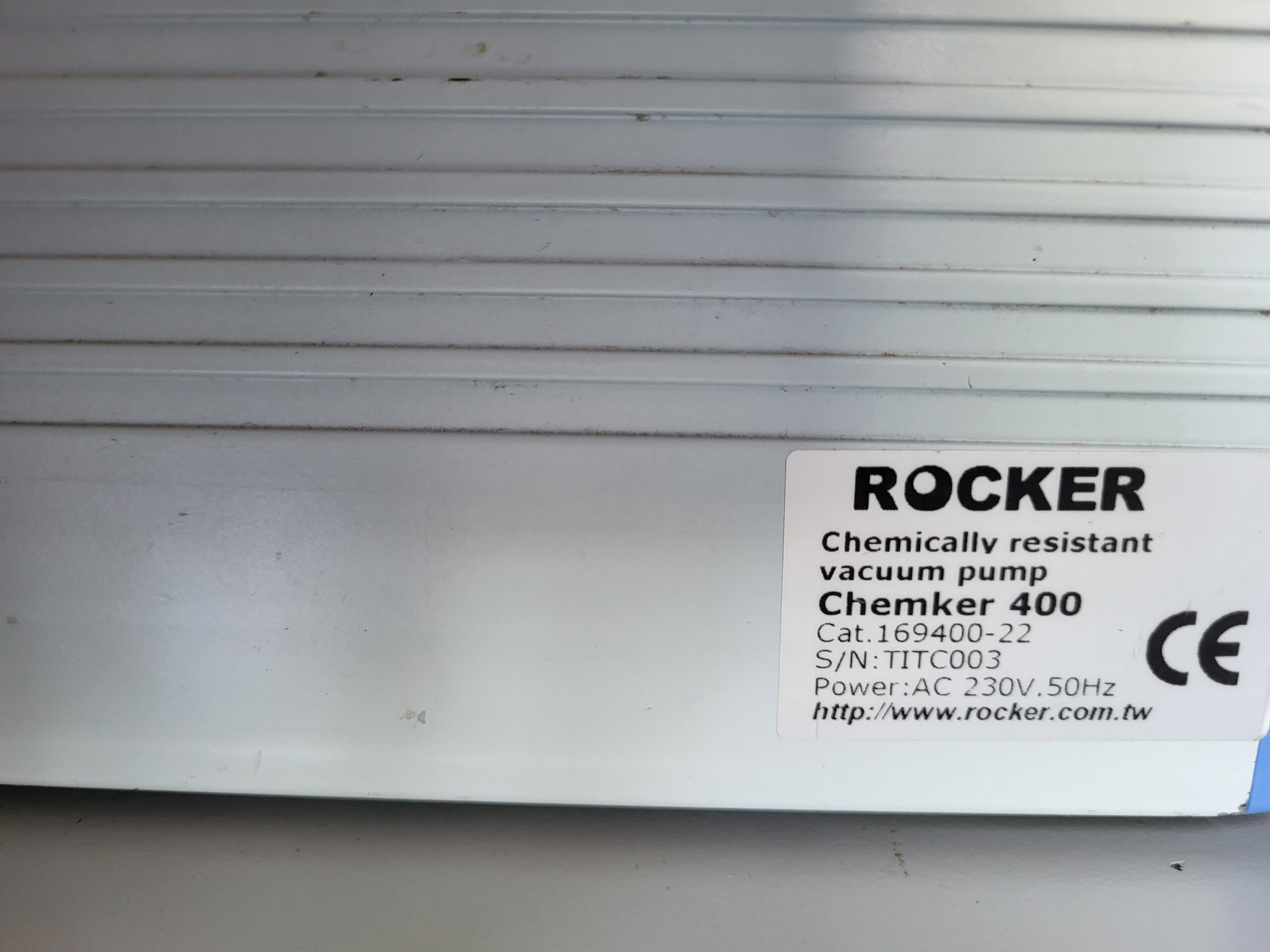

- Catalogue number: 169400-22
- Serial number: T1TC003
- Pump type: oil-free diaphragm vacuum pump
- Chemical resistance: PTFE wetted parts
- Application: vacuum filtration, gel electrophoresis, SPE, solvent purification, degassing and laboratory vacuum supply
- Maximum flow rate: 33 L/min at 50 Hz
- Nominal maximum vacuum: -670 mmHg / approximately 120 mbar
- Motor speed: 1450 rpm at 50 Hz
- Motor power: 1/6 HP
- Current rating: 0.5 A
- Hose barb connection: 5/16 inch / 8 mm
- Noise level: approximately 50 dB
- Thermal protection: yes
- Dimensions W x D x H: approximately 11.2 x 26.7 x 18.1 cm
- Net weight: approximately 7.0 kg
- Power supply: AC 230 V, 50 Hz
- CE marked
