Description

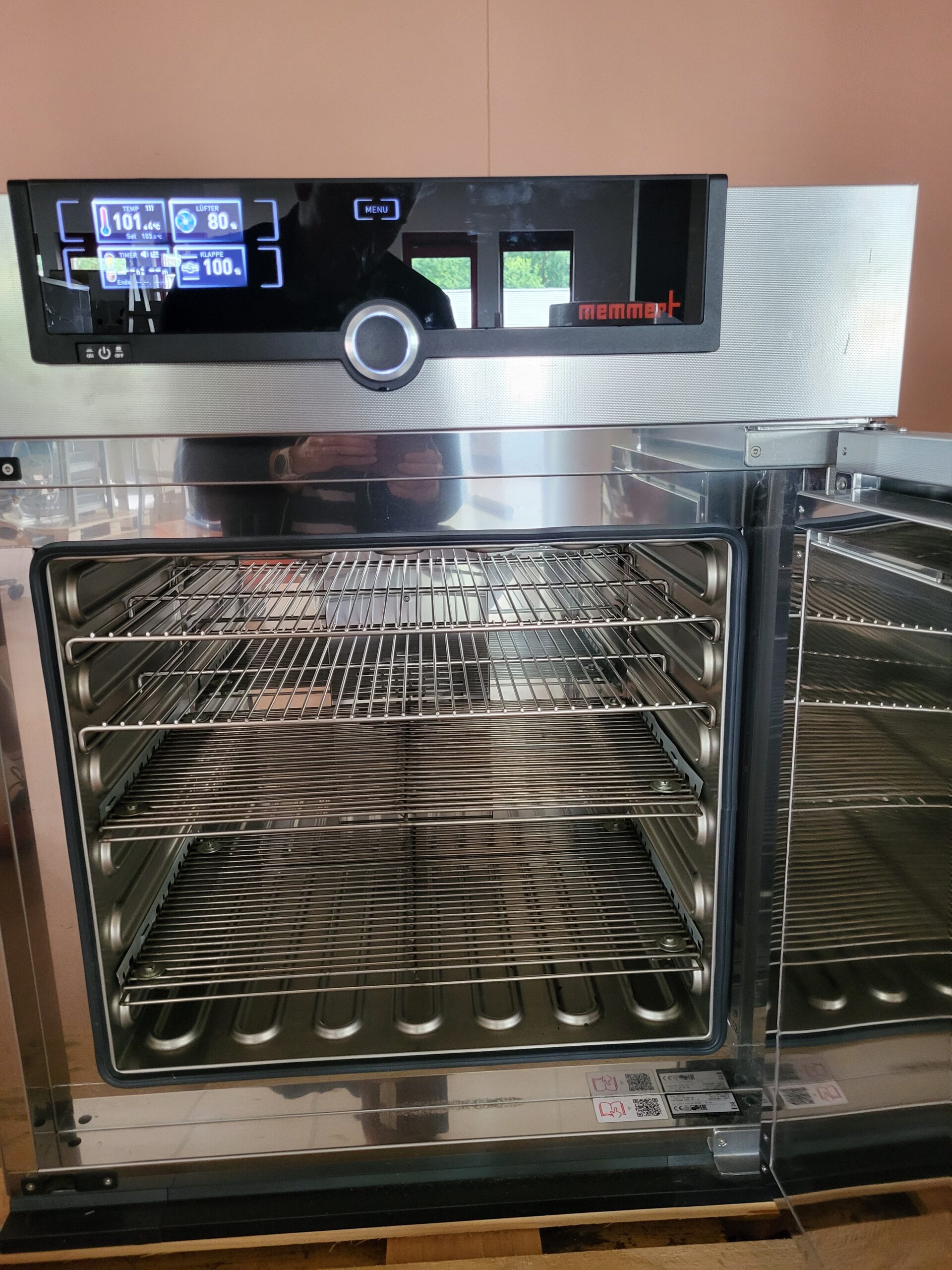

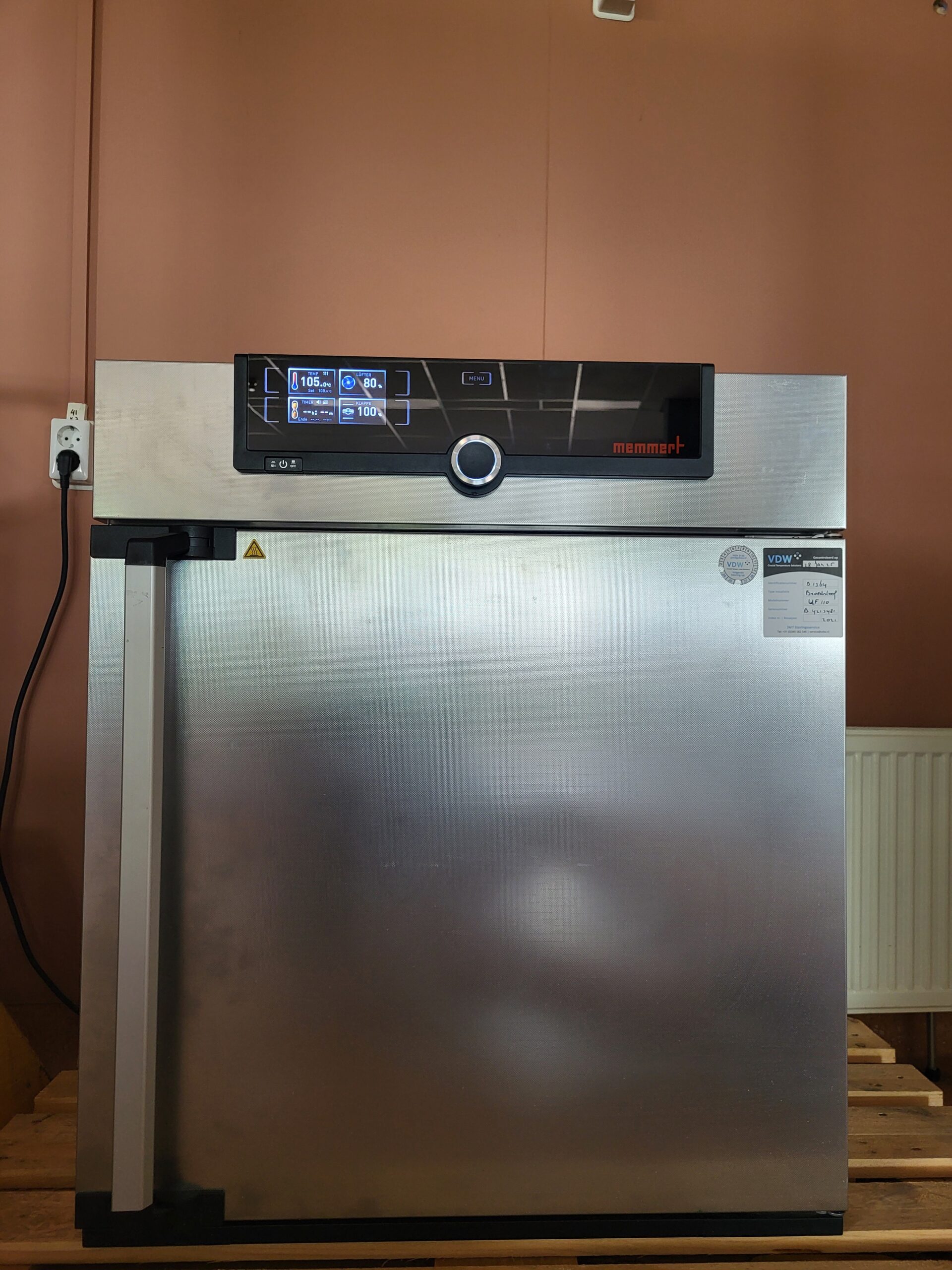

This used Memmert UF110 Universal Oven out of 2021 is a forced-air laboratory heating and drying oven designed for precise drying, heating, ageing, burn-in and hardening applications in research, science, industry and quality assurance. With a 108 litre stainless steel chamber, digital SingleDISPLAY control and forced air circulation, the UF110 is suitable for routine laboratory work as well as industrial material testing and temperature-controlled processes.
The Memmert UF110 uses forced air circulation by a quiet air turbine and has an electronically adjustable fresh-air flap for controlled ventilation. The stainless steel interior is easy to clean and designed for long-term laboratory use. Typical applications include drying of samples and materials, heat treatment, stability testing, ageing tests, component testing, burn-in testing and general temperature-controlled laboratory processes.
Specifications
- Manufacturer: Memmert
- Model: UF110
- Type: Universal Oven / Heating and Drying Oven
- Air circulation: Forced air circulation

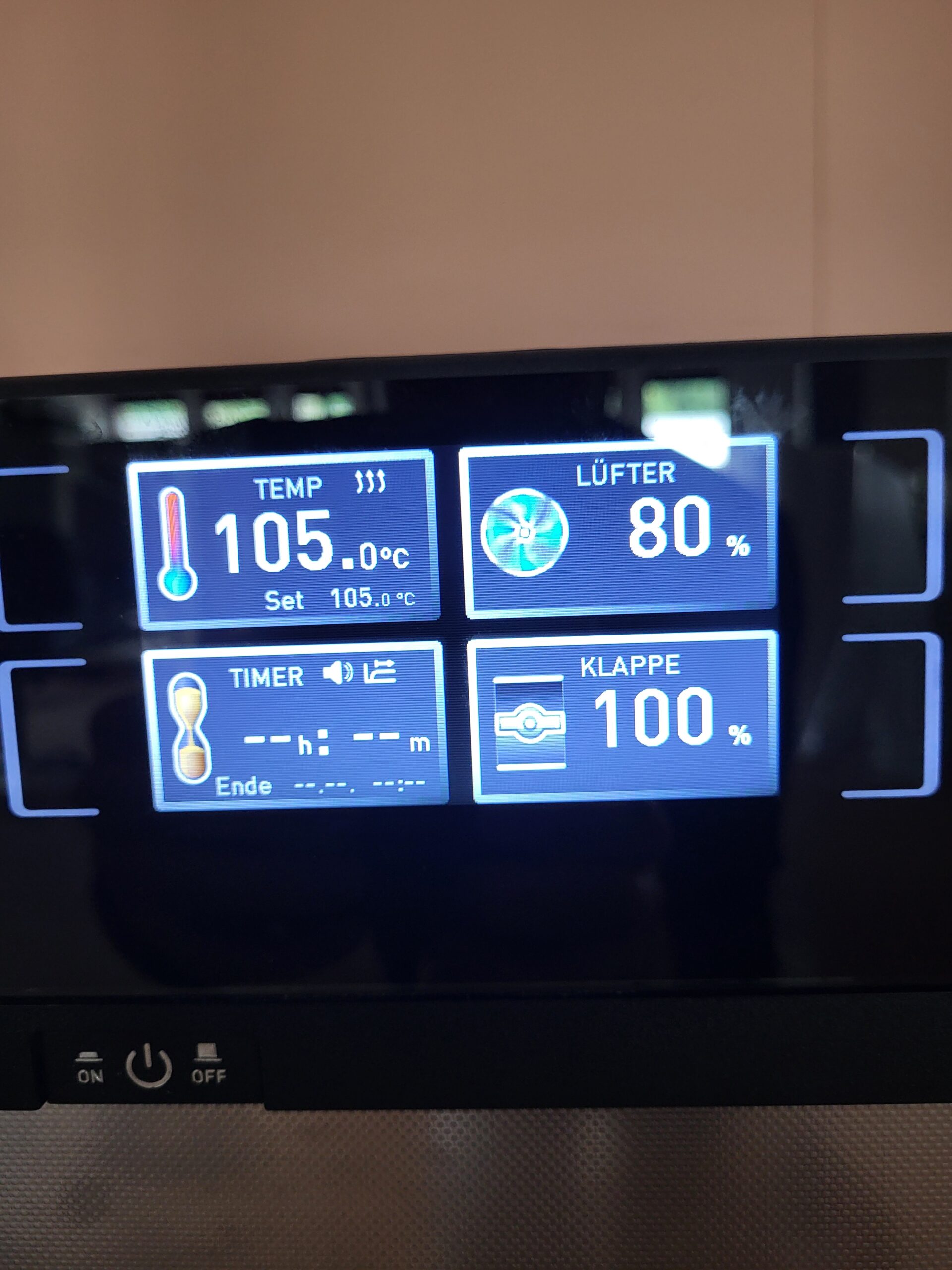

- Control system: ControlCOCKPIT SingleDISPLAY
- Controller: Adaptive multifunctional digital PID microprocessor controller with high-definition TFT colour display
- Chamber volume: 108 litres
- Working temperature range: at least 10°C above ambient temperature to +300°C
- Setting temperature range: +20°C to +300°C
- Setting accuracy temperature: 0.1°C up to 99.9°C / 0.5°C from 100°C
- Temperature sensor: 1 Pt100 sensor DIN class A in 4-wire circuit
- Timer: Digital backwards counter, adjustable from 1 minute to 99 days
- SetpointWAIT function: process time starts only after set temperature is reached
- Calibration: three freely selectable temperature values
- Adjustable parameters: temperature, fan speed, air flap position, programme time, time zones and summertime/wintertime
- Fan system: forced air circulation by quiet air turbine, adjustable in 10% steps
- Fresh air: admixture of pre-heated fresh air by electronically adjustable air flap
- Vent connection: vent connection with restrictor flap
- Overtemperature protection: adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880
- Autodiagnostic system: for fault analysis
- Standard factory internals: 2 electropolished stainless steel grids
- Maximum number of internals: 5
- Maximum chamber load: 175 kg
- Maximum load per internal: 20 kg
- Interior material: stainless steel
- Interior dimensions W x H x D: 560 x 480 x 400 mm
- Exterior dimensions W x H x D: 745 x 864 x 584 mm
- Electrical data: 230 V, 50/60 Hz
- Electrical load: approximately 2800 W
- Net weight: approximately 74 kg
- Country of origin: Germany
For more info see the Memmert website.
