Description

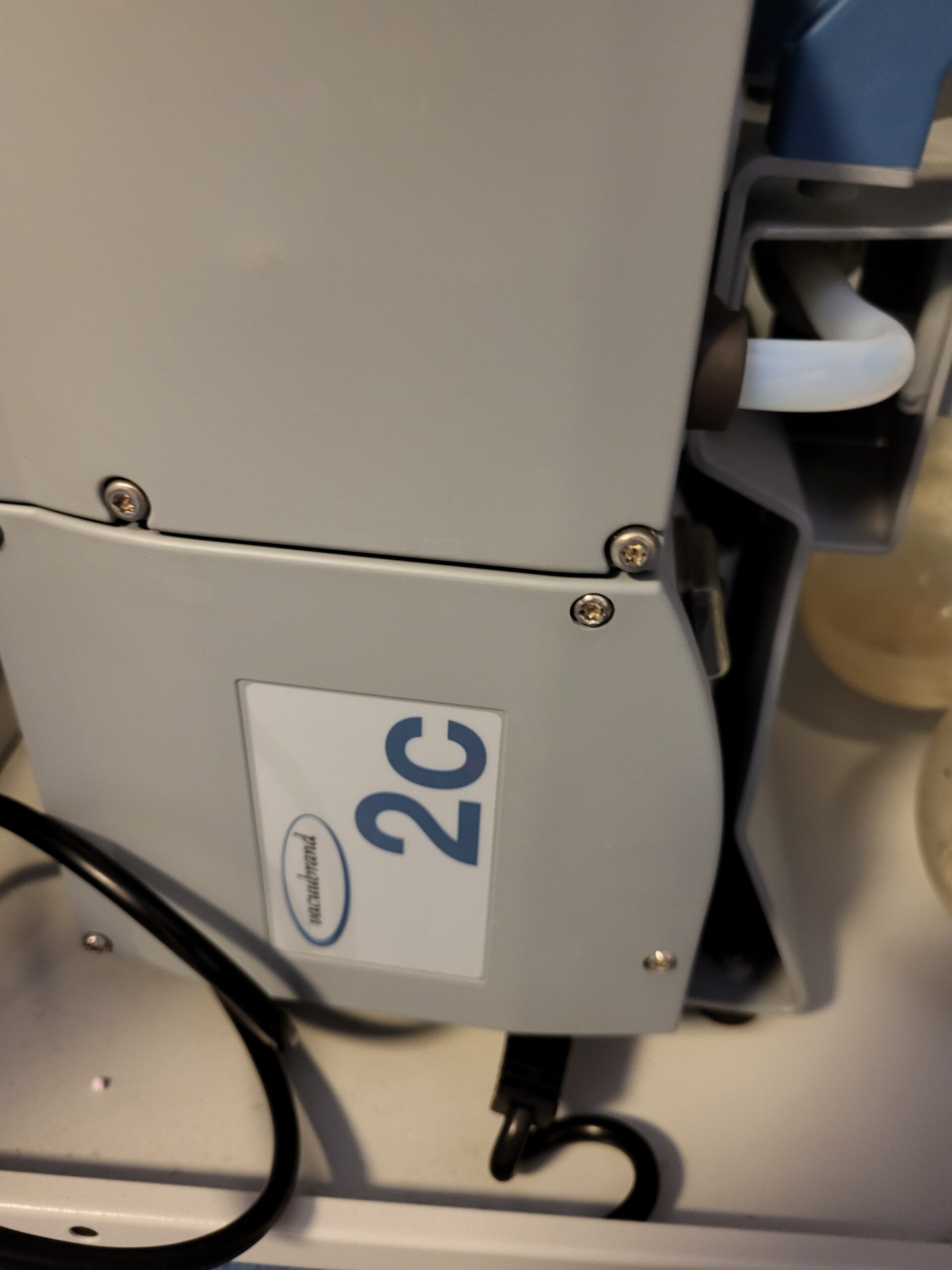

This used Vacuubrand MZ 2C NT + AK + EK Chemistry Vacuum System is outfitted with both an inlet glass separator (AK) and an exhaust vapor condenser (EK), making it ideal for handling solvent vapors and corrosive gases. The system offers oil-free, chemically resistant vacuum for demanding lab applications.
It features a two-stage diaphragm pump design with excellent vapor tolerance and long diaphragm life. The AK separator catches droplets and particulates at the inlet, while the EK condenser allows efficient solvent recovery and protects the pump from vapors. This setup is well suited to rotary evaporation, vacuum drying, solvent concentration, and similar laboratory tasks.
Specifications:
- Model: MZ 2C NT + AK + EK
- Max pumping speed (50 Hz): 2.0 m³/h
- Ultimate vacuum (no gas ballast): 7 mbar
- Ultimate vacuum with gas ballast: 12 mbar
- Connections: Hose nozzle DN 8–10 mm (inlet and outlet)
- Coolant connections: 2 × hose nozzle DN 6–8 mm
- Motor power: 0.18 kW
- Motor speed: 1500 / 1800 min⁻¹
- Protection class: IP 40
- Dimensions (L × W × H): 326 × 243 × 402 mm
- Weight: ~ 14.2 kg
- Noise: ~ 45 dBA
- Inlet AK: glass separator retaining droplets
- EK: condenser for solvent vapor recovery
For more info see the vacuubrand website.

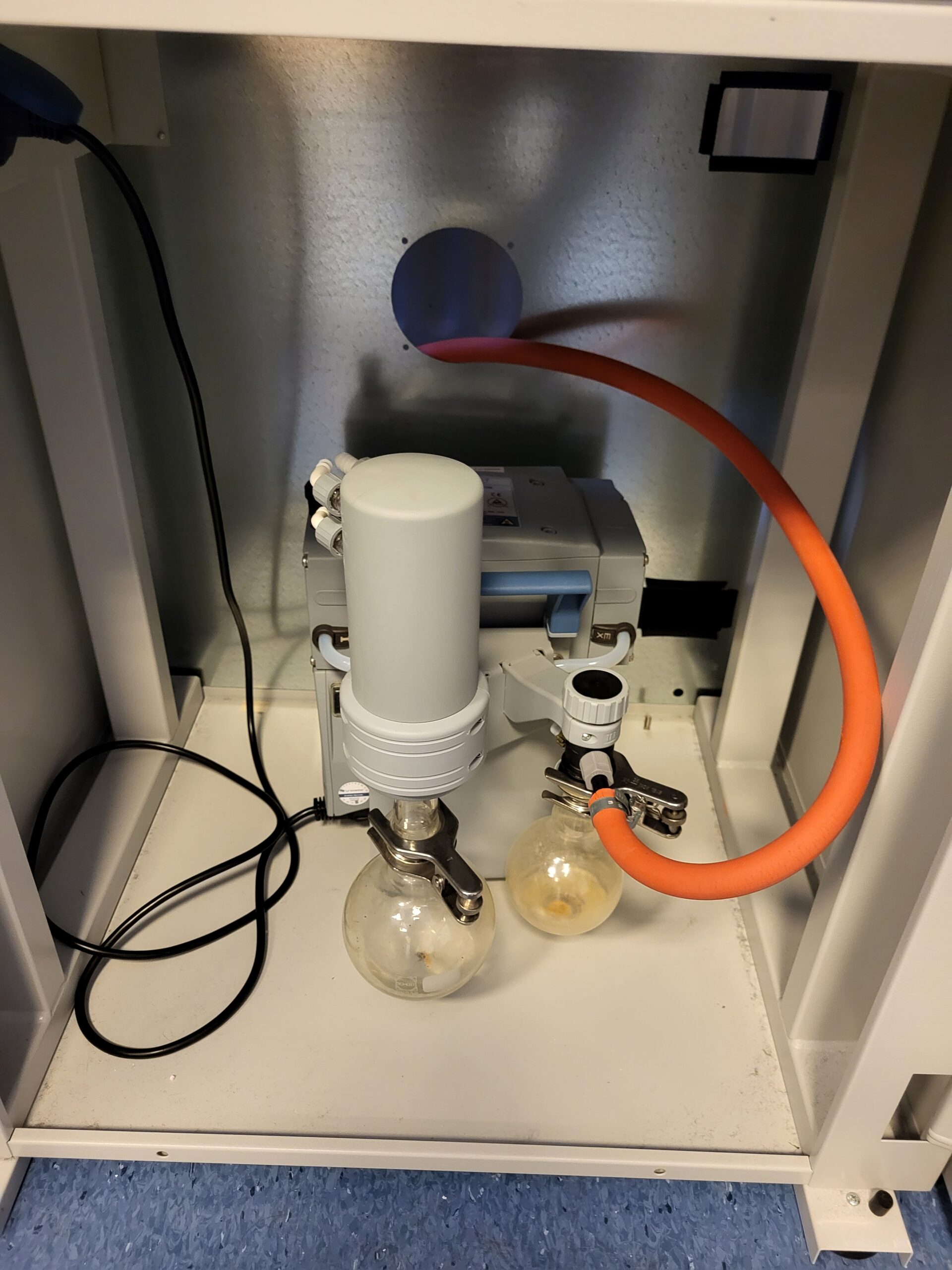

The shown noise box is optional.
