Description

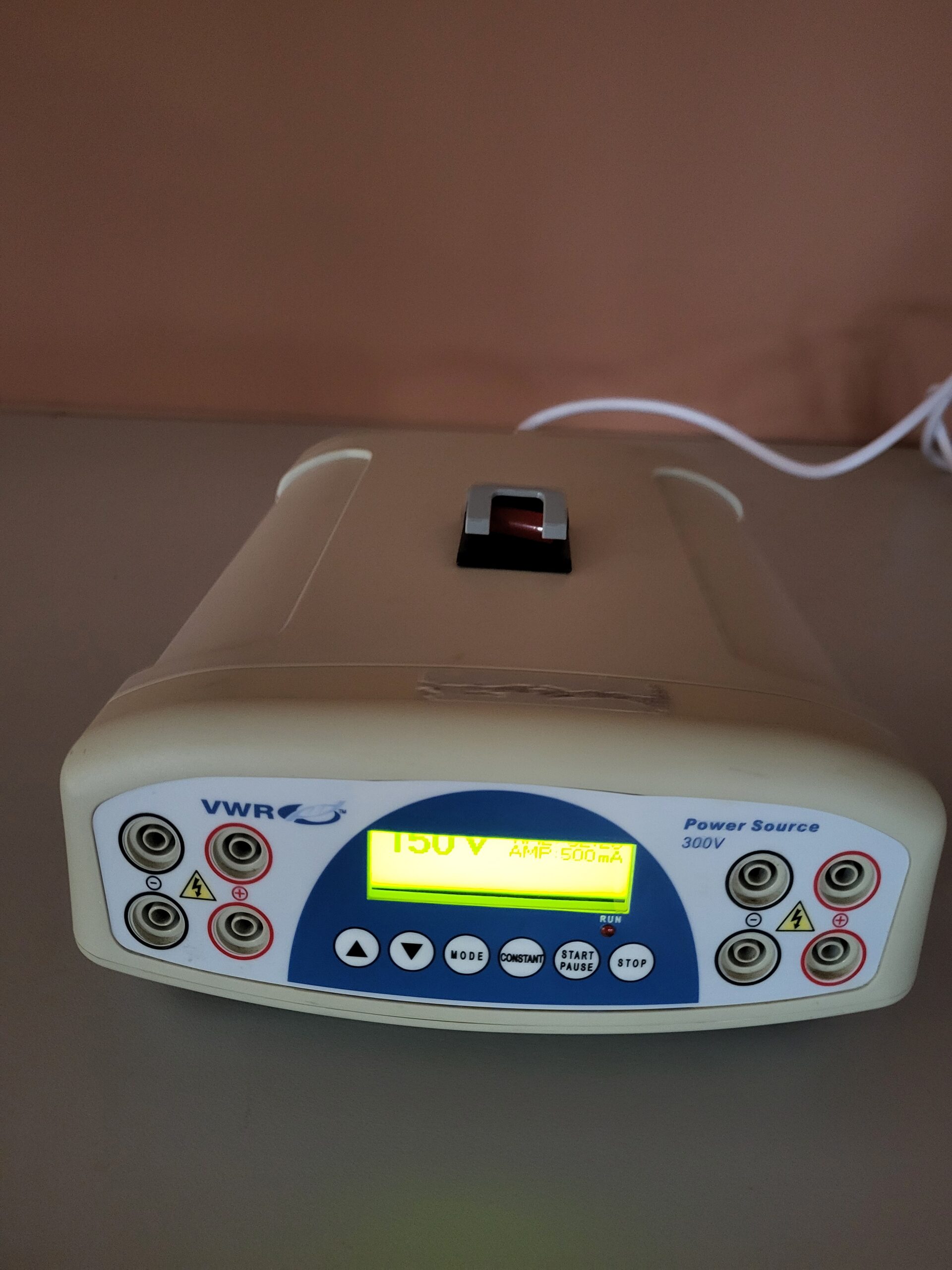

This used VWR Power Source 300V Electrophoresis Power Supply is a compact laboratory power supply designed for electrophoresis and blotting applications. The unit is suitable for DNA, RNA and protein electrophoresis, agarose gel electrophoresis, SDS-PAGE, small blotting systems and general molecular biology laboratory workflows.
The Power Source 300V provides constant voltage and constant current operation with automatic crossover. The large backlit LCD display allows easy setting and monitoring of voltage, current and run time. With four colour-coded output terminal pairs, multiple compatible electrophoresis tanks can be connected at the same time.
Specifications
- Manufacturer: VWR International
- Model: Power Source 300V
- Type designation: 300V
- Type: electrophoresis power supply
- Applications: DNA, RNA and protein electrophoresis, gel electrophoresis, blotting and molecular biology workflows
- Output voltage range: 2–300 V
- Voltage increment: 1 V
- Output current range: 4–500 mA
- Current increment: 1 mA
- Maximum output power: 90 W
- Operating modes: constant voltage and constant current
- Crossover: automatic
- Timer: 1–999 minutes or continuous
- Programmable: no
- Display: large backlit LCD display
- Output terminal pairs: 4 colour-coded terminal pairs
- Safety features: short circuit, overcurrent / overvoltage, no-load and load-change detection according to VWR specification

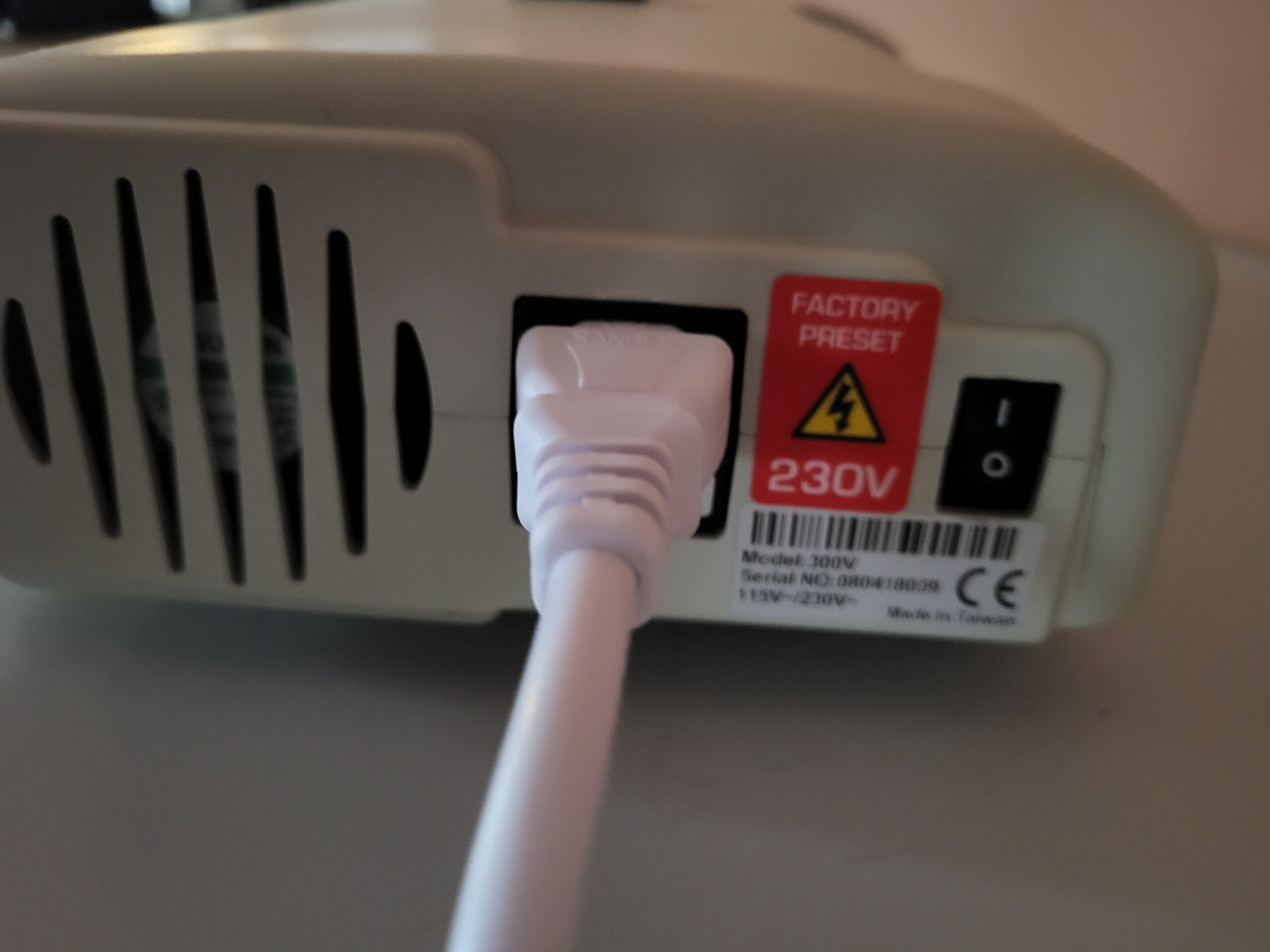

- Input voltage: 115–230 V / factory preset 230 V
- Frequency: 47–60 Hz
- Rated input power: 150 W
- Rated output: max. 300 V / 500 mA / 90 W
- Protection class: I
- Dimensions W x D x H: approximately 190 x 250 x 80 mm
- Weight: approximately 2.2 kg
