This used TA Discovery HR-1 Hybrid Rheometer was installed in February 2020 in a biomedical research laboratory in the Netherlands and remained in use until mid-2025, when the facility closed after an acquisition. The system is in excellent condition, lightly used, and includes all essential accessories for immediate operation. The “real” newprice in 2020 was approximately €42000.
The Discovery HR-1 combines TA Instruments’ patented drag-cup motor, magnetic bearing design, and force rebalance transducer (FRT) to deliver high torque resolution and exceptional sensitivity for oscillatory, steady-shear, and creep measurements. This Smart-Swap Peltier configuration supports precise temperature-controlled testing of polymers, gels, emulsions, and biological materials.
The configuration includes:
- Discovery HR-1 Hybrid Rheometer (model 5332-3010)
- Electronics control module
- DHR AR Smart-Swap Advanced Peltier Plate
- Heat exchanger Peltier
- Smart-Swap SST ST 20 mm Peltier plate
- Smart-Swap SST ST 40 mm Peltier plate
- TA Air-Cooled Circulator

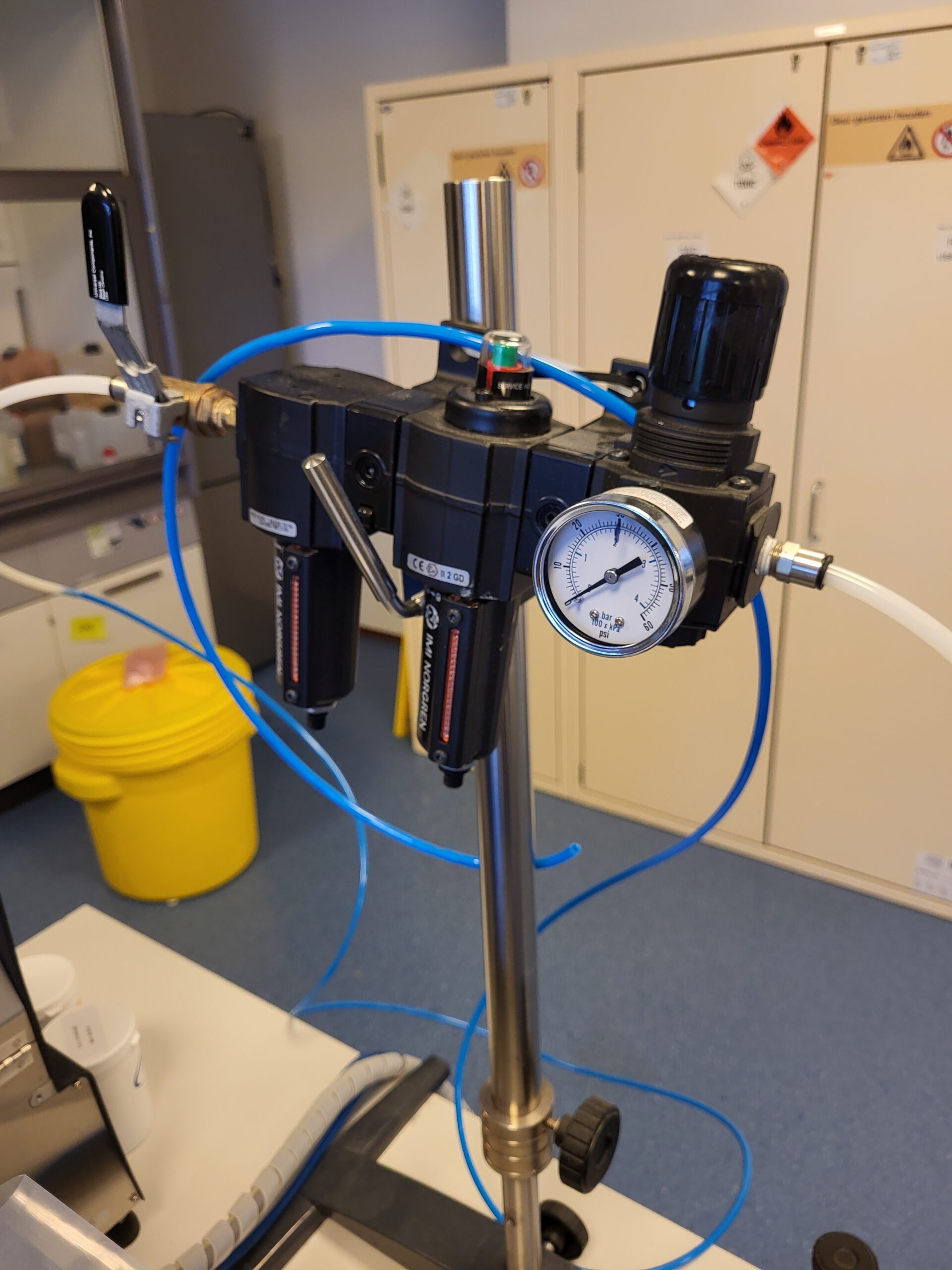

- Shown gas valve (not the standard).
- IQ/OQ manual
- A TRIOS V5 software disc (to be installed on a suitable separate PC)
Main technical Specifications:
- Torque range: 10 nN·m (oscillation) to 150 mN·m max
- Torque resolution: 0.1 nN·m
- Steady shear minimum torque: 20 nN·m
- Normal force range: ± 50 N (FRT sensor)
- Normal force resolution: 1 mN (sensitivity 0.01 N)
- Angular velocity: 0 – 300 rad/s
- Frequency range: 1 × 10⁻⁷ Hz to 100 Hz
- Displacement resolution: ≈ 10 nrad (optical encoder)
- Temperature control: Smart-Swap Peltier plates (20 mm & 40 mm) + Advanced Peltier plate + air-cooled circulator
- Bearing system: Thrust – magnetic; Radial – porous carbon
- Geometry mount: Smart-Swap automatic recognition
- Software: TRIOS V5 (on disc, installation required)
- Documentation: IQ/OQ manual included
- Condition: Excellent, lightly used since installation in 2020
For more info see the brochure or contact us.
